Types of Pulleys in Conveyors

Pulleys play a critical role in the functioning of conveyor systems, which are widely used in various industries, from manufacturing to transportation. They facilitate smooth operation by guiding the belt and ensuring efficient movement of materials. There are several types of pulleys used in conveyor systems, each designed for specific purposes based on the requirements of the application.

1. Drive Pulley

The drive pulley is one of the most essential components in a conveyor system. This pulley is powered by a motor that drives the conveyor belt, allowing it to move the materials. Drive pulleys are generally placed at the head of the conveyor and are designed to exert sufficient traction to prevent slippage of the belt. They often have a lagging surface, which enhances grip and prevents wear and tear. The design of drive pulleys can vary based on the load and speed requirements, but their primary function remains the same providing the necessary drive for the system.

2. Idler Pulley

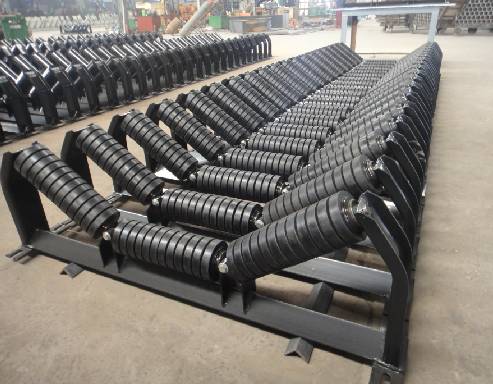

Unlike drive pulleys, idler pulleys do not have a power source but are crucial for supporting the conveyor belt and maintaining its tension. These pulleys are strategically placed along the conveyor line to reduce belt sagging, maintain proper alignment, and ensure an even distribution of material over the belt. Idler pulleys can be of various types, including return idlers, which support the return segment of the belt, and impact idlers, designed to absorb shocks from heavy loads. The choice of idler pulley can significantly influence the efficiency and longevity of the conveyor system.

3. Tail Pulley

The tail pulley is located at the end of the conveyor system and serves as a return point for the belt after it has completed its cycle. This pulley is essential for redirecting the belt back to the drive pulley. Tail pulleys are often designed to minimize wear since they handle the return side of the belt, which is typically under less tension than the driven side. Depending on the design, tail pulleys can also incorporate features that assist in keeping the belt aligned.

4. Snub Pulley

Snub pulleys are used to increase the wrap angle of the belt around the drive pulley, which in turn enhances the friction and improves the drive. These pulleys are typically placed between the drive pulley and an idler pulley, allowing for better efficiency in power transfer. Snub pulleys are particularly useful in situations where the drive pulley is relatively small, as they compensate for reduced contact areas.

5. Take-Up Pulley

Take-up pulleys are crucial in maintaining belt tension within the conveyor system. They are typically used in conjunction with a take-up mechanism that adjusts the position of the pulley to keep the belt tight. This is important for preventing slippage and ensuring reliable performance. Proper tensioning helps in minimizing wear on the belt and increases the overall efficiency of the conveyor system.

In conclusion, the various types of pulleys in conveyor systems work together to ensure efficient material handling. Understanding their roles and applications is essential for optimizing conveyor design and functionality, thereby enhancing productivity in various industrial operations.
