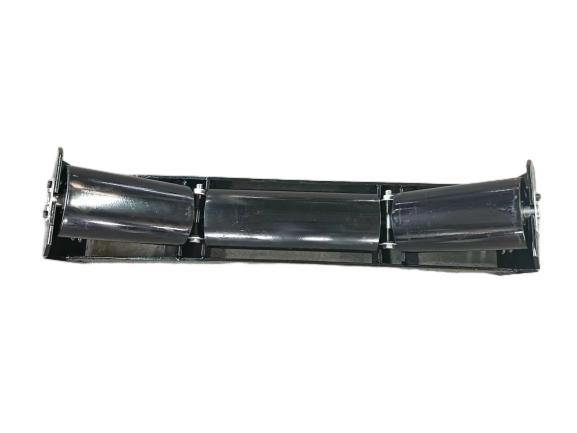

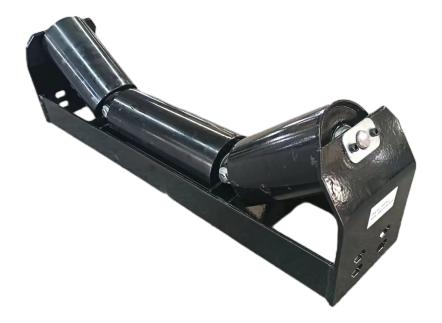

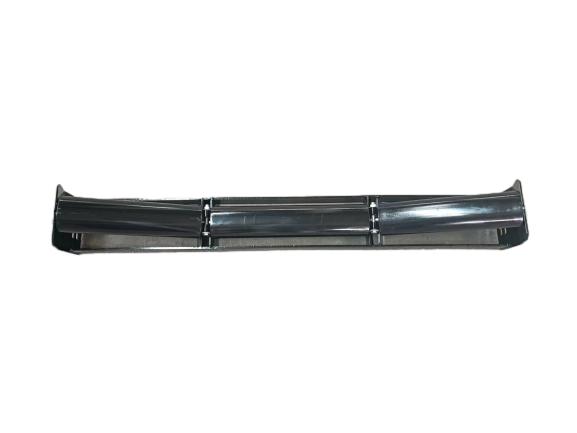

Low Profile Channel Mount Cushion Impact Idler

low profile channel mount cushion impact idler is an important part of belt conveyor , which is used in the narrow space environment and plays the supporting role of belt and material.

CONTACT NOW PDF DOWNLOAD

Details

Tags

Detail Description

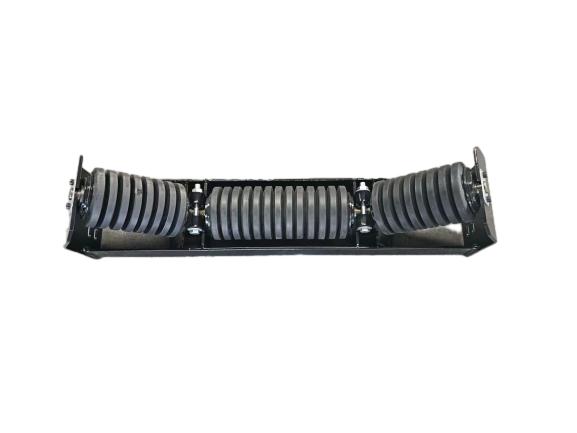

low profile channel mount cushion idler is another form of impact idlers, with light weight, small volume, and compact structure. It especially applies to the retractable conveyors.

Product Specification

Product Details	Description	Order Services
Product Name:low profile channel mount cushion impact idler	Frame Material :Angle Steel、Channel Steel、Steel Pipe	Minimum order:1 piece
Origin Name：Hebei Province,China	Material Standard:Q235B、Q235A	Price:Negotiable
Brand Name:AOHUA	Wall Thickness:6-12mm or according to orders	Packing:Fumigation-free plywood box, iron frame, pallet
Standard:CEMA、ISO、DIN、JIS、DTII	Welding:Mixed Gas Arc Welding	Delivery time:10-15days
Belt Width:400-2400mm	Welding Method:Welding Robot	Payment Term:TT、LC
Life Time:30000 Hours	Color:Black、Red、 Green 、Blue、 or according to orders	Shipping port:Tianjin Xingang、Shanghai、Qingdao
Wall Thickness Range Of Roller:2.5~6mm	Coating Process:Electrostatic powder spraying、Painting、Hot-Dip-Galvanizing
Diameter Range of Roller:48-219mm	Application: Coal mine, cement plant, crushing, power plant, steel mill, metallurgy, quarrying, printing, recycling industry and other conveying equipment
Diameter Range of Axle：17-60mm	Before and After service:support online、Video technical support
Bearing Brand:HRB、ZWZ、 LYC 、SKF 、FAG、 NSK

Product Parameters

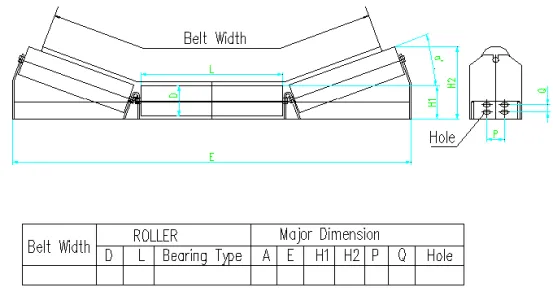

Major Parameter Table for low profile channel mount cushion impact idler
Standard Diameter		Length Range (mm)	Bearing Type (min-max)	Wall-Thickness of Roller (mm)
mm	inch	Length Range (mm)	Bearing Type (min-max)	Wall-Thickness of Roller (mm)
63.5	2 1/2	150-3500	6204	2.0-3.75
76	3	150-3500	6204 205	3.0-4.0
89	3 1/3	150-3500	6204 205	3.0-4.0
102	4	150-3500	6204 205 305	3.0-4.0
108	4 1/4	150-3500	6204 205 305 306	3.0-4.0
114	4 1/2	150-3500	6205 206 305 306	3.0-4.5
127	5	150-3500	6204 205 305 306	3.0-4.5
133	5 1/4	150-3500	6205 206 207 305 306	3.5-4.5
140	5 1/2	150-3500	6205 206 207 305 306	3.5-4.5
152	6	150-3500	6205 206 207 305 306 307 308	3.5-4.5
159	6 1/4	150-3500	6205 206 207 305 306 307 308	3.0-4.5
165	6 1/2	150-3500	6207 305 306 307 308	3.5-6.0
177.8	7	150-3500	6207 306 307308 309	3.5-6.0
190.7	7 1/2	150-3500	6207 306 307308 309	4.0-6.0
194	7 5/8	150-3500	6207 307 308 309 310	4.0-6.0
219	8 5/8	150-3500	6308 309 310	4.0-6.0
