Self Aligning Idler – Auto-Center, Low Wear, Easy Install

Why a Self Aligning Idler quietly saves your belt (and your budget)

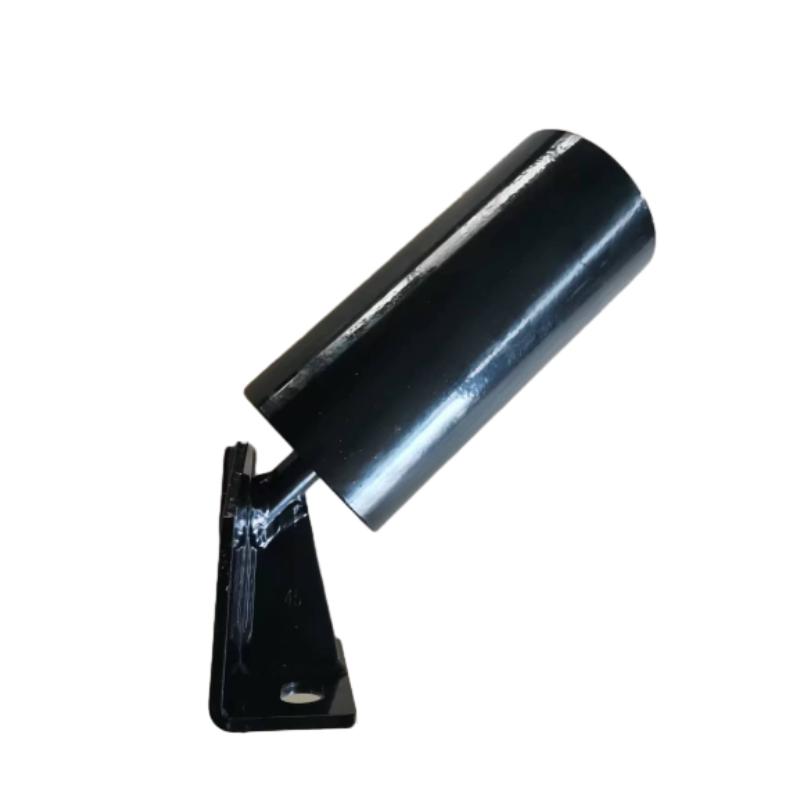

If you’ve run a bulk conveyor for more than a week, you’ve seen belt wander. The fix that keeps showing up on my site visits is the Side Roller—also called Standing or Wing Roller—from Yanshan, Cangzhou, Hebei. It’s a type of Self Aligning Idler that nudges a mis-tracking belt back to center. Simple idea, big impact. And yes, many customers tell me it’s the least glamorous, most valuable upgrade they made this year.

Product snapshot

Origin: East Outer Ring Road, Yanshan County, Cangzhou City, Hebei Province, China. This aligning roller set is designed to prevent conveyor belt deviation with minimal intervention. In practice, it just works.

Industry trend check

Two things are happening: lower rolling resistance designs (better bearings, tighter runout) and “smarter” idlers—RFID tags, periodic vibration checks, even occasional IoT pilots. Honestly, most mines and quarries still want rugged, serviceable gear first; sensors come second.

Typical specifications (field-proven, ≈ values)

How it’s built (brief process flow)

Materials: Q235B tube, CK45 shaft, 2RS bearings, labyrinth seals, NLGI #2 grease. Methods: tube cutting, CO2/MAG welding, CNC turning, press-fit assembly, dynamic balancing. Testing: runout per ISO 21940-11, water/dust ingress to ≈IP67, rotation resistance, noise, and load tests aligned with CEMA 502. That’s the boring stuff—and it’s what keeps belts calm.

Where a Self Aligning Idler earns its keep

• Primary and overland conveyors in mining and aggregates
• Ship loaders, port terminals, and stockyard belts
• Cement plants and power stations (coal/ash lines)

Benefits: reduced edge damage, less spillage, fewer cleanup hours, and fewer “stop and square” moments. Some teams report 15–30% fewer belt-tracking interventions after installing Self Aligning Idler sets—your mileage may vary with belt condition and loading.

Vendor snapshot (indicative)

Customization that matters

Diameter/shaft size, 20°/35°/45° wing angles, rubber-lagged or HDPE shells for sticky ores, stainless shafts for corrosive zones, and OEM color/labeling. I’d also ask for balancing to ISO G16 or better and a grease spec that suits your ambient.

Quick case notes

Quarry, 1000 mm belt: swapping to Self Aligning Idler wing sets cut cleanup by an estimated 25% and reduced edge fray within a month. Coal plant, 1400 mm belt: team reported ~3 dB noise drop at the transfer, which surprised them more than anything.

Standards and test anchors

Designed around CEMA 502 dimensions and guidance; DIN 22112 geometry can be met on request. Balancing and runout per ISO 21940-11. Quality system: ISO 9001. If your insurer or EPC needs paperwork, ask for the test sheets; reputable factories will share them.
