Understanding the Critical Role of Bend Pulleys in Modern Conveyor Systems

In the realm of bulk material handling, the efficiency and reliability of conveyor systems are paramount. At the heart of these complex systems, various components work in concert to ensure seamless operation. Among these, the bend pulley, often referred to as a non-driving pulley, plays a crucial, yet often underestimated, role. These essential components are designed to change the direction of the conveyor belt, provide tension, and snub the belt, thereby optimizing the belt's path and extending its operational life. They are indispensable for maintaining proper belt tracking, reducing friction, and ensuring the stability of the entire conveyor line, from long-haul transportation networks to intricate processing plants.

This comprehensive guide delves into the technical intricacies, application advantages, and strategic considerations for selecting and implementing high-performance bend pulley solutions in demanding industrial environments.

Industry Trends Driving Bend Pulley Innovation

The bulk material handling industry is undergoing significant transformation, driven by demands for increased productivity, enhanced safety, and reduced operational costs. These macro trends directly influence the design and requirements for components like the bend pulley:

• Higher Capacities & Speeds: Modern industrial operations require conveyors to handle larger volumes of material at faster speeds. This necessitates robust bend pulleys capable of withstanding higher dynamic loads, increased belt tension, and greater wear, often requiring larger diameters and heavier-duty construction.
• Energy Efficiency: With rising energy costs and environmental mandates, there's a strong push for components that minimize energy consumption. Optimized conveyor bend pulley designs, featuring precision machining, low-friction bearings, and advanced lagging, contribute significantly to reducing the overall power draw of a conveyor system by minimizing rolling resistance.
• Enhanced Durability & Service Life: Industries like mining, cement, and port logistics operate in harsh, abrasive, and often corrosive environments. The trend is towards components that offer extended service life, reducing downtime for maintenance and replacement. This translates to material advancements, superior welding techniques, and protective coatings for bend pulleys.
• Predictive Maintenance & Digitalization: The integration of smart sensors and IoT technologies into conveyor systems allows for real-time monitoring of component health. Future bend pulleys may incorporate embedded sensors to track temperature, vibration, and rotation, enabling predictive maintenance and preventing catastrophic failures.
• Customization for Specific Applications: Off-the-shelf solutions are increasingly being replaced by highly customized designs to meet unique operational demands, such as extreme temperatures, specific material characteristics, or tight space constraints.

These trends underscore the importance of investing in high-quality, engineered conveyor bend pulley solutions that are designed for performance, longevity, and operational efficiency.

Technical Specifications and Anatomy of a Bend Pulley

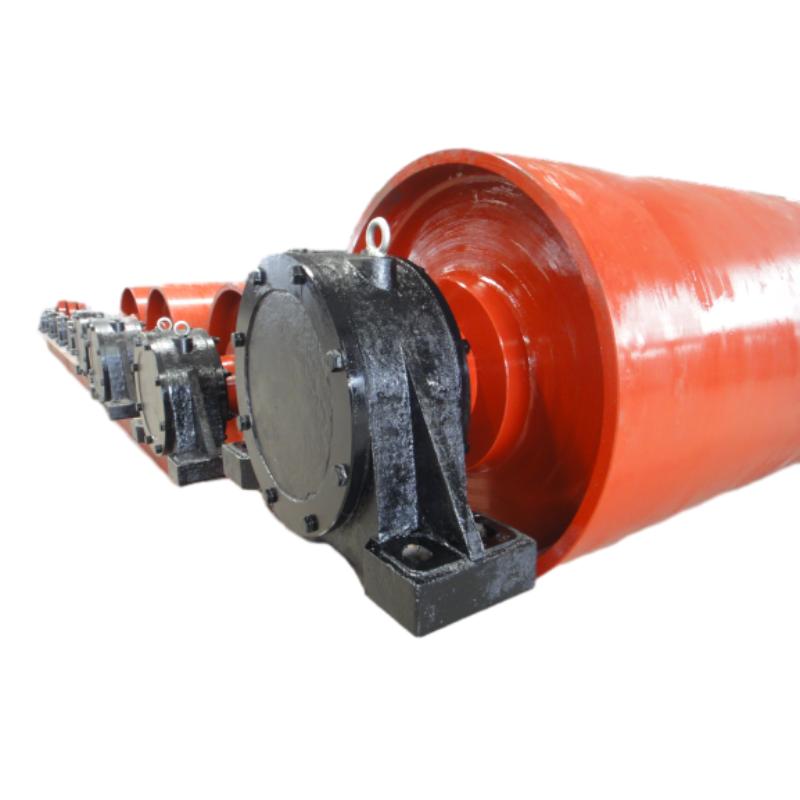

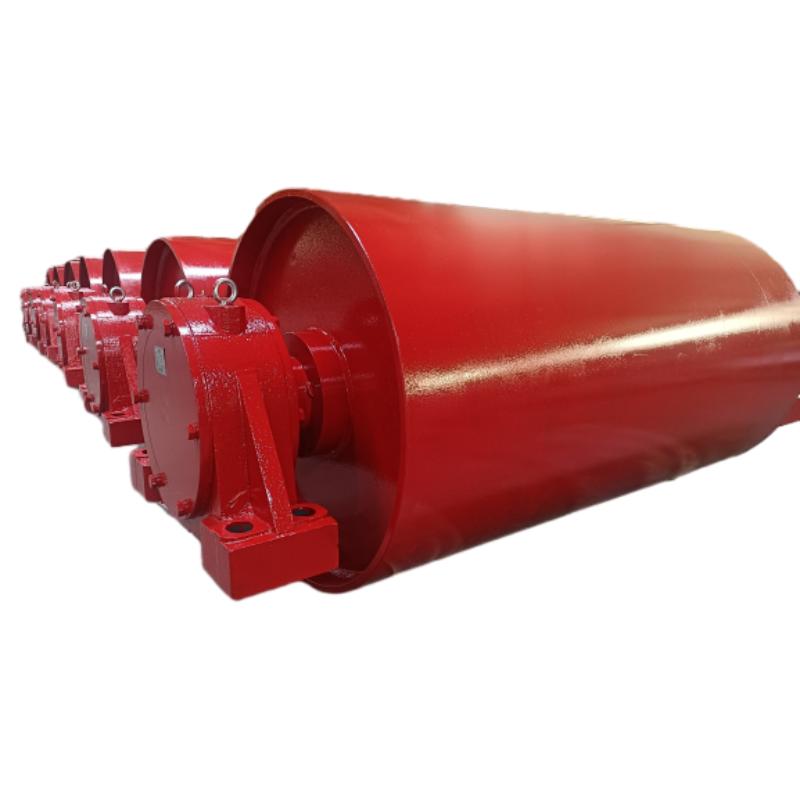

A bend pulley, while appearing simple, is a highly engineered component consisting of several critical parts, each contributing to its overall performance and durability. Understanding these elements is key to selecting the right pulley for a given application.

Core Components:

• Shell: The cylindrical outer body, typically fabricated from heavy-duty steel plate (e.g., Q235, Q345, or equivalent high-strength alloys). Its thickness and material composition are crucial for resisting deflection and wear under high belt tensions.
• End Discs: Precision-machined steel plates welded to the shell, providing structural integrity and housing the bearing assemblies. They are designed to transfer loads from the shell to the shaft effectively.
• Shaft: The central component, usually made from high-tensile steel (e.g., C45, 40Cr, or equivalent alloy steel), that supports the pulley and transmits loads to the bearing supports. Shaft diameter and material are critical for preventing bending and fatigue.
• Bearings: High-quality spherical roller bearings or deep groove ball bearings (e.g., SKF, FAG, NSK equivalents) are typically used, selected based on load, speed, and environmental conditions. Sealed and lubricated-for-life options are common for reduced maintenance.
• Bearing Housing: Robust cast or fabricated steel housings protect the bearings from contaminants and facilitate mounting to the conveyor frame.
• Lagging: An outer layer applied to the pulley shell, usually made of rubber (plain, grooved, or diamond pattern) or ceramic tiles. Lagging increases friction between the belt and pulley, reduces belt slippage, minimizes wear on both the belt and pulley, and can shed material build-up.

Key Technical Parameters for Bend Pulley Selection:

Careful consideration of these parameters ensures optimal performance and longevity for any conveyor bend pulley installation.

The Manufacturing Process of a High-Performance Bend Pulley

The production of a robust and reliable bend pulley involves a meticulous multi-stage manufacturing process, leveraging advanced engineering and quality control to meet stringent industrial demands. This process is critical in ensuring the final product’s structural integrity, precise dimensions, and extended service life.

Process Flow:

1. Material Selection & Preparation: High-grade steel plates (e.g., ASTM A36, JIS SS400, EN S235JR for general use; higher strength alloys for heavy duty) are selected for the shell and end discs. Shaft material typically involves high-tensile carbon steel or alloy steel bars (e.g., C45, 40Cr) chosen for their fatigue resistance and machinability. Materials undergo rigorous inspection for chemical composition and mechanical properties.
2. Plate Cutting & Forming: Steel plates are precisely cut using CNC plasma or laser cutting machines to form the shell segments and end disc blanks. The shell segments are then rolled into cylindrical forms using advanced plate bending machines. End discs are often forged or cut from thick plates, then precisely machined.
3. Welding & Assembly: The rolled shell sections are longitudinally welded. End discs are accurately positioned and welded to the shell, ensuring concentricity and structural integrity. Critical welds are performed using automated submerged arc welding (SAW) or gas metal arc welding (GMAW) processes to achieve deep penetration and high-quality seams. Non-destructive testing (NDT) such as ultrasonic testing or magnetic particle inspection is often applied to critical weld areas.
4. CNC Machining of Shaft & Shell: The shaft is precision-machined on CNC lathes to achieve exact dimensions for bearing fits, keyways, and mounting surfaces, ensuring minimal run-out. The pulley shell's ends are also machined to ensure perpendicularity and concentricity, preparing for bearing housing fitment. This precision is vital for minimizing vibration and extending bearing life.
5. Dynamic Balancing: To prevent vibration and premature wear, especially in high-speed applications, each bend pulley undergoes dynamic balancing according to ISO 1940 standards. This process identifies and corrects mass imbalances, ensuring smooth and quiet operation.
6. Surface Treatment & Coating: After cleaning and descaling, the pulley surfaces are prepared for painting or coating. Options include industrial primers and topcoats for corrosion resistance (e.g., epoxy, polyurethane), chosen based on the operating environment (e.g., marine, acidic, humid).
7. Lagging Application: The outer surface of the pulley shell is lagged. This involves bonding a rubber sheet (cold vulcanization) or ceramic tiles (hot vulcanization or adhesive bonding) to the shell. The choice of lagging (plain, grooved, diamond, ceramic) depends on friction requirements, wear resistance, and material shedding needs. High-quality lagging significantly improves belt grip and extends belt life.
8. Bearing & Housing Assembly: High-precision bearings are pressed onto the shaft, which is then inserted into the pulley shell's machined bores. Bearing housings are securely bolted, and seals are installed to protect the bearings from dust and moisture.
9. Final Quality Control & Testing: Each finished conveyor bend pulley undergoes a comprehensive final inspection, including dimensional checks, run-out measurements, weld integrity verification, and functional checks of bearing rotation. Adherence to international standards like ISO 9001 (Quality Management), ISO 1098 (Conveyor Pulleys), and ANSI B20.1 (Safety Standards for Conveyors) ensures product excellence.

This rigorous manufacturing process ensures that each bend pulley delivered is not just a component, but a high-performance solution designed for optimal service life and reliability, even in the most challenging environments such as petrochemical plants, metallurgical facilities, mining operations, and large-scale water supply & drainage systems.

Application Scenarios and Strategic Advantages

The strategic placement and appropriate selection of bend pulley components are crucial for the optimal functioning of any conveyor system. Their versatility allows for deployment in a myriad of configurations across diverse industries.

Typical Application Scenarios:

• Directional Changes: The primary function of a conveyor bend pulley is to smoothly change the direction of the conveyor belt, allowing for complex layouts and adaptation to site-specific spatial constraints. This is essential in multi-level processing plants or long-distance overland conveyors navigating varied terrain.
• Belt Tensioning Systems: In gravity take-up or winch-operated take-up systems, bend pulleys are integral to maintaining the correct belt tension, which is critical for preventing slippage, ensuring proper tracking, and facilitating effective material transfer.
• Snub Pulleys: Positioned close to the drive pulley, snub pulleys increase the arc of contact between the belt and the drive pulley, thereby enhancing the drive's friction and power transmission efficiency.
• Steep Incline Conveyors: For conveying materials up steep inclines, bend pulleys are strategically placed to ensure the belt follows the intended path, preventing material rollback and maintaining system stability.
• Discharge & Loading Points: At material discharge points or transfer stations, bend pulleys help guide the belt to ensure precise and controlled material flow, minimizing spillage and optimizing loading efficiency.
• Reclaimers & Stackers: In bulk storage and retrieval systems, these pulleys are vital for the continuous movement of belts on mobile equipment like reclaimers and stackers, which require frequent directional changes.

Demonstrable Advantages in Application:

• Energy Saving: Properly designed and manufactured bend pulleys minimize rolling resistance and friction losses. Precision machining, balanced construction, and high-efficiency bearings significantly reduce the power required to operate the conveyor, leading to substantial energy cost savings over the system's lifespan. Studies show that optimized idlers and pulleys can reduce conveyor power consumption by 5-10%.
• Corrosion Resistance & Durability: In industries like petrochemical, marine, and chemical processing, exposure to corrosive elements is a constant threat. Specially treated pulleys with advanced coatings (e.g., hot-dip galvanization, epoxy paint systems) and stainless steel components offer superior resistance, ensuring extended service life and reduced maintenance in hostile environments.
• Extended Belt Life: Smooth, well-balanced bend pulleys with appropriate lagging prevent excessive wear and tear on the conveyor belt. By maintaining proper tension and tracking, they reduce edge damage, belt slippage, and premature degradation, directly contributing to a longer belt service life, a significant operational cost saving.
• Reduced Downtime & Maintenance: The robust construction and use of high-quality components in premium bend pulleys translate directly into higher reliability and fewer unexpected failures. This minimizes unscheduled downtime, a critical factor in maintaining continuous production in high-capacity operations.
• Enhanced Safety: Stable and precisely tracking conveyor belts, facilitated by reliable bend pulleys, contribute to a safer working environment by reducing the risk of belt misalignment, spillage, and potential entanglement hazards.

These advantages underscore why selecting the right bend pulley is not merely a component choice, but a strategic decision impacting the overall operational efficiency, safety, and profitability of a bulk material handling system.

Vendor Comparison for Bend Pulley Solutions

Choosing the right supplier for conveyor bend pulley solutions is a critical decision that impacts not only initial investment but also long-term operational costs and system reliability. While price is often a primary consideration (i.e., bend pulley price), it is essential to evaluate vendors based on a holistic set of criteria that reflects total cost of ownership (TCO) and performance guarantees.

Key Evaluation Criteria:

• Manufacturing Expertise & Capabilities: Assess the vendor's production facilities, technological capabilities (e.g., CNC machining, automated welding, dynamic balancing), and their capacity for custom fabrication to meet unique specifications.
• Quality Control & Certifications: Verify adherence to international quality standards (e.g., ISO 9001:2015). Inquire about specific product testing protocols (e.g., NDT for welds, run-out tests, material certifications).
• Material Quality & Component Sourcing: Understand the origin and grade of raw materials (steel, bearings, lagging). Reputable vendors use certified materials and work with established bearing manufacturers (e.g., SKF, FAG, Timken).
• Engineering & Design Support: A strong vendor offers comprehensive engineering support, from initial design consultation to detailed technical drawings and performance simulations, ensuring the pulley is perfectly matched to your conveyor's needs.
• After-Sales Service & Warranty: Evaluate the vendor's commitment to post-purchase support, including installation guidance, spare parts availability, and robust warranty programs.
• Industry Experience & Reputation: Look for vendors with a proven track record in your specific industry. Customer testimonials, case studies, and years of service provide valuable insights into their reliability and expertise.

Comparative Analysis: Standard vs. High-Performance Bend Pulleys

While the initial bend pulley price for high-performance options might be higher, the long-term benefits in terms of reduced downtime, lower maintenance, energy savings, and extended operational life often yield a superior return on investment (ROI). Prudent procurement focuses on value and reliability rather than just upfront cost.

Customized Solutions for Unique Challenges

Off-the-shelf bend pulley solutions may suffice for standard applications, but complex industrial environments often present unique challenges that demand tailored engineering. Leading manufacturers specialize in providing customized conveyor bend pulley solutions designed to precisely meet specific operational requirements, optimizing performance and maximizing efficiency.

• Special Dimensions & Load Capacities: For exceptionally wide belts, very high tensions, or tight space constraints, custom diameters, face widths, and shaft configurations are essential. This includes designing pulleys for extremely heavy loads or specialized conveyor geometries.
• Extreme Environmental Conditions:
  • High Temperatures: Requires specialized materials for the shell, shaft, bearings, and lagging (e.g., high-temperature greases, heat-resistant rubber, or metallic lagging) to prevent degradation.
  • Low Temperatures: Materials and lubricants must be capable of maintaining performance and ductility in sub-zero conditions, preventing embrittlement.
  • Corrosive Environments: Stainless steel construction, specialized coatings (e.g., galvanization, epoxy, ceramic), and advanced sealing systems are employed to resist acids, alkalis, and saline conditions.
  • Abrasive Materials: Ceramic lagging, hardened steel shells, or specific polyurethane lagging types are used to combat severe wear from highly abrasive bulk materials.
• Specialized Lagging Options: Beyond standard rubber, custom lagging can include fire-resistant anti-static (FRAS) rubber for mining, highly aggressive ceramic tiles for extreme grip and wear, or specialized patterns for unique material shedding requirements.
• Advanced Bearing & Sealing Systems: Custom solutions can incorporate advanced bearing types for specific radial/axial loads, or multi-labyrinth sealing systems for maximum protection against fine dust, moisture, or chemical ingress.
• Integrated Sensor Technology: For smart conveyor systems, bend pulleys can be customized with integrated sensors for real-time monitoring of temperature, vibration, and rotational speed, enabling predictive maintenance and enhancing operational visibility.

Engaging with a manufacturer capable of delivering bespoke bend pulley solutions ensures that every aspect of the pulley is optimized for your specific application, leading to superior performance, reduced operational risks, and a longer return on investment.

Application Case Studies: Proving Bend Pulley Excellence

Real-world applications demonstrate the tangible benefits of high-quality bend pulley engineering. These case studies highlight how optimized pulley solutions contribute significantly to operational efficiency, safety, and longevity in demanding industrial settings.

Case Study 1: Enhancing Coal Handling at a Major Power Plant

Challenge: A large thermal power plant faced frequent downtime and high maintenance costs due to premature failure of standard bend pulleys in their high-capacity coal handling system. The abrasive nature of coal dust, coupled with varying moisture levels, led to rapid bearing wear and lagging detachment, impacting power generation schedules.

Solution: The plant replaced its conventional pulleys with custom-engineered bend pulleys featuring heavy-duty shell construction, sealed spherical roller bearings, and highly wear-resistant ceramic lagging. The shafts were manufactured from heat-treated alloy steel for enhanced fatigue resistance.

Results: Over a two-year period, the plant observed a 45% reduction in unscheduled downtime related to pulley failures. Bearing life was extended by over 150%, and the ceramic lagging significantly reduced belt slippage, contributing to an estimated 2% reduction in energy consumption for the conveyor line. The overall maintenance budget for pulleys decreased by 30% annually.

Case Study 2: Optimizing Ore Transportation in a Remote Mining Operation

Challenge: A remote iron ore mine experienced severe corrosion and bearing contamination issues with its existing conveyor bend pulley installations, primarily due to extreme weather conditions (heavy rain, high humidity) and fine ore dust. This resulted in frequent bearing replacements and costly logistics for parts in an isolated location.

Solution: The mine implemented a specialized solution incorporating bend pulleys with hot-dip galvanized shells, stainless steel shafts, and multi-labyrinth seals designed to IP66 standards for superior dust and water ingress protection. Lubricated-for-life sealed bearings were also selected to minimize on-site maintenance requirements.

Results: The custom pulleys demonstrated exceptional performance. Corrosion-related failures were virtually eliminated, leading to a 60% extension in bearing service life. The enhanced sealing technology drastically reduced the need for bearing lubrication and replacement, resulting in an estimated $150,000 annual saving in maintenance and logistics costs for the affected conveyor section.

Case Study 3: Improving Throughput at a Port Grain Terminal

Challenge: A major grain export terminal sought to increase throughput by optimizing their ship loading conveyors. Existing bend pulleys exhibited inconsistent belt tracking and occasional slippage, particularly during high-speed operation and when handling various grain types, limiting their ability to maximize loading rates.

Solution: The terminal upgraded its critical bend pulleys to models with precision-machined shells and high-friction, diamond-grooved rubber lagging. Dynamic balancing was a key specification to ensure smooth operation at increased belt speeds. The vendor also provided detailed engineering calculations to ensure optimal pulley diameters for reduced belt stress and enhanced tracking.

Results: The upgraded pulleys significantly improved belt tracking stability and eliminated slippage, allowing the terminal to safely increase conveyor operating speeds by 10%. This led to a direct 8% increase in overall grain loading throughput per hour, translating to substantial gains in operational capacity and faster vessel turnaround times. The enhanced reliability also contributed to a 20% reduction in minor belt adjustments and related maintenance interventions.

Trust & Transparency: FAQ, Lead Time, Warranty & Support

Building trust with B2B clients requires transparency in processes, clear commitments, and robust support. Here, we address common inquiries regarding our bend pulley solutions and operational policies.

Frequently Asked Questions (FAQ):

Lead Time & Fulfillment:

Our lead times for conveyor bend pulley orders are dependent on the complexity, size, and quantity required. For standard configurations, typical lead times range from 4-6 weeks from order confirmation. Custom-engineered solutions may require 8-12 weeks, as they involve detailed design, material procurement, and specialized manufacturing processes. We work closely with our clients to establish realistic timelines and offer expedited options for urgent projects where feasible.

Warranty Commitments:

We stand by the quality and durability of our bend pulley products. All our pulleys come with a standard warranty of 18 months from the date of shipment or 12 months from installation, whichever comes first, covering defects in materials and workmanship. Extended warranty options are available for specific projects or high-wear applications, reflecting our confidence in the long-term performance of our engineered solutions.

Customer Support & After-Sales Service:

Our commitment extends beyond delivery. We provide comprehensive after-sales support, including technical consultations, troubleshooting assistance, spare parts supply, and maintenance guidance. Our dedicated support team is available to ensure your bend pulley systems operate reliably and efficiently throughout their lifespan. For inquiries or support, please visit our contact page or reach out to your designated account manager.

Conclusion: Investing in Reliability and Performance

The bend pulley is far more than a static component; it is a dynamic element critical to the efficiency, longevity, and safety of modern conveyor systems. As industries push the boundaries of capacity and operational demands, the need for robust, precisely engineered, and application-specific bend pulleys becomes increasingly vital.

By understanding the intricate manufacturing processes, technical specifications, and real-world advantages, B2B decision-makers and engineers can make informed choices that optimize their bulk material handling infrastructure. Investing in high-quality, customized conveyor bend pulley solutions not only mitigates risks and reduces maintenance costs but also significantly enhances energy efficiency and extends the overall service life of the entire conveyor belt system, ultimately leading to a more profitable and sustainable operation.

Partnering with a proven manufacturer that adheres to stringent quality standards and offers comprehensive support ensures that your investment in bend pulleys translates into long-term operational excellence and a competitive advantage.

Authoritative References

1. Conveyor Equipment Manufacturers Association (CEMA). (2014). Belt Conveyors for Bulk Materials (7th ed.).
2. ISO 1098:2020. (2020). Continuous mechanical handling equipment – Belt conveyors – Pulleys – Dimensions and other characteristics. International Organization for Standardization.
3. Lodewijks, G. (2007). The state of the art in belt conveyor technology. Bulk Solid Handling, 27(1), 16-23.
4. Jonkers, C. (2013). Energy Efficiency of Belt Conveyors. Bulk Solids & Powder Science & Technology, 8(1), 1-9.
5. DIN 22101-1:2018-04. (2018). Continuous conveyors - Belt conveyors for loose bulk material - Part 1: Design principles, calculations, examples of calculations. Deutsches Institut für Normung.
