Durable Belt Conveyor Rollers for Efficient Material Handling

Elevating Material Handling: Advanced belt conveyor roller Technologies

In the demanding landscape of modern industrial operations, the efficiency and reliability of bulk material handling systems are paramount. At the core of these systems, the belt conveyor roller stands as a critical component, directly impacting conveyor performance, energy consumption, and operational longevity. This article delves into the sophisticated world of conveyor rollers, exploring industry trends, technical intricacies, diverse applications, and the competitive advantages offered by advanced solutions like friction rollers. Our aim is to provide B2B decision-makers and engineers with a comprehensive understanding necessary to optimize their material transport infrastructures.

The global market for conveyor systems, particularly those relying on robust belt conveyor technologies, continues its upward trajectory. Fueled by growth in mining, construction, logistics, and manufacturing, the demand for high-performance conveyor idler rollers and rubber conveyor rollers is escalating. Current industry trends emphasize durability, energy efficiency, reduced maintenance, and environmental sustainability. Innovations are focused on advanced sealing mechanisms, lightweight yet strong materials, and smart monitoring capabilities to predict failures and optimize operational uptime. The push for automation and smart factories further reinforces the need for reliable, long-lasting components capable of withstanding harsh industrial environments.

The Meticulous Manufacturing Process of a Conveyor Roller

The production of a high-quality belt conveyor roller is a multi-stage, precision-driven process, ensuring each component meets stringent performance and durability standards. From raw material selection to final quality assurance, every step is critical for producing rollers that deliver exceptional service life and operational efficiency.

Manufacturing Process Flow:

Material Sourcing & Preparation: High-grade steel (e.g., carbon steel Q235, stainless steel 304/316) is selected for the roller shell and shaft. For rubber conveyor rollers, specialized abrasion-resistant natural or synthetic rubber compounds are prepared.
Shaft Production (Forging/CNC Machining): The roller shaft, critical for structural integrity, is typically forged for strength or precision CNC machined from solid bar stock to exact tolerances, ensuring concentricity and surface finish.
Shell Fabrication (Tube Cutting & Welding): Steel tubes are cut to specified lengths. The ends are then precisely welded with end caps, often using automated robotic welding to ensure strong, uniform seams and minimal distortion.
Bearing Housing & Sealing System Assembly: Precision bearings (e.g., C3/C4 clearance deep groove ball bearings) are pressed into robust bearing housings. Multi-labyrinth, contact, or non-contact sealing systems are integrated to protect bearings from dust, moisture, and contaminants, significantly extending the service life of the belt conveyor roller.
Surface Treatment & Coating: Depending on application, roller shells undergo surface treatments such as shot blasting for enhanced adhesion, followed by powder coating or hot-dip galvanizing for superior corrosion resistance. For rubberized rollers, the rubber is vulcanized onto the steel shell.
Final Assembly: The prepared shaft, shell, bearing housings, and seals are meticulously assembled. Specialized tooling ensures precise alignment and secure fitment of all components.
Quality Control & Testing: Each belt conveyor roller undergoes rigorous testing based on international standards like ISO 1536, ANSI/CEMA B105.1, and DIN 22107. Tests include:
- Run-out and Radial Deflection Test
- Axial Movement Test
- Rotational Resistance Test (critical for energy efficiency)
- Dynamic and Static Load Testing
- Water and Dust Ingress Protection (IP ratings)
- Noise Level Measurement
Packaging & Dispatch: Rollers are carefully packaged to prevent damage during transit, ready for deployment in various industrial settings.

This meticulous process ensures that each conveyor idler roller or troughing roller can offer an extended service life, often exceeding 50,000 hours under typical operating conditions, and deliver specific advantages such as energy saving through low rotational resistance (typically

Technical Specifications and Performance Parameters

Understanding the technical specifications of different belt conveyor roller types is crucial for selecting the right component for a given application. Key parameters directly influence performance, durability, and operational cost.

Key Technical Parameters for Conveyor Rollers

Roller Diameter: Typically ranges from 60mm to 219mm, influencing belt speed and material capacity.
Roller Length: Matched to belt width, from 150mm to 2000mm.
Shaft Diameter: 20mm to 50mm, dictated by load capacity and bearing size.
Material: Steel (Q235, 20#, 45#), Stainless Steel (304, 316), HDPE, Nylon.
Bearing Type: Deep groove ball bearings (e.g., 6204, 6305, 6306, 6308) with C3/C4 clearance.
Sealing System: Multi-labyrinth, contact lip seals, non-contact grease-filled seals; IP55 to IP67 protection ratings.
Surface Treatment: Powder coating, hot-dip galvanizing, rubber lagging.
Rotational Resistance: Crucial for energy efficiency. High-quality rollers typically exhibit
Load Capacity: Varies significantly by design, from light-duty (e.g., 50 kg) to heavy-duty (e.g., 500 kg per roller).
Service Life: Designed for 30,000 to 80,000 operational hours depending on quality, maintenance, and operating conditions.

Product Specification Table: Friction Roller (Example)

Parameter	Specification
Product Type	Friction Roller (Return Training Idler)
Roller Diameter	Ø89mm - Ø194mm
Shell Material	Q235 Carbon Steel, Rubber Lagged
Shaft Material	45# Steel, Cold Drawn
Bearing	6305-2RS, C3 Clearance
Sealing System	Multi-labyrinth, Non-contact, Grease-filled (IP66)
Surface Treatment	Powder Coated Frame, Rubber Lagged Roller
Rotational Resistance	Typically
Service Life	≥ 50,000 operating hours

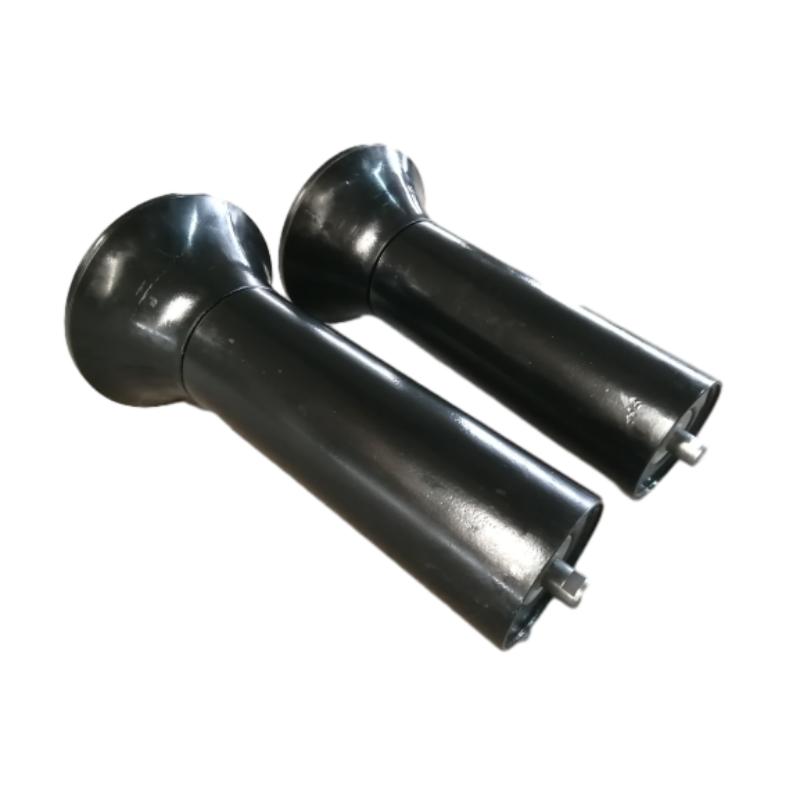

Durable Belt Conveyor Rollers for Efficient Material Handling

The design of specific belt conveyor roller types, such as the troughing roller or conveyor belt drive rollers, optimizes them for distinct functions. Troughing rollers are designed to support the loaded belt in a trough shape, preventing spillage and increasing carrying capacity. Drive rollers, conversely, are typically larger and often lagged with rubber to enhance friction and transmit power effectively from the motor to the belt. Each design is a testament to specialized engineering catering to specific operational demands.

Application Scenarios and Technical Advantages

The versatility of the belt conveyor roller makes it indispensable across a multitude of heavy industries. Its robust design and tailored configurations enable efficient material transport in even the harshest environments.

Target Industries & Usage Scenarios:

Mining & Quarrying: Transport of coal, iron ore, aggregates, and overburden. Heavy-duty conveyor idler rollers with robust seals are crucial due to abrasive materials and extreme conditions.
Metallurgy & Steel Production: Conveying hot sinter, coke, and slag. High-temperature resistant rollers, often with ceramic lagging or specialized alloys, are employed.
Cement & Construction: Movement of cement clinker, sand, gravel, and construction debris. Rollers here need excellent wear resistance.
Ports & Terminals: Bulk handling of grains, fertilizers, and minerals. Corrosion-resistant rollers (e.g., galvanized or stainless steel) are vital in marine environments.
Power Generation (Thermal Power Plants): Coal handling systems require durable and low-maintenance conveyor idlers.
Chemical & Petrochemical: Conveying various chemical compounds and raw materials. Specialized coatings and materials are used to withstand corrosive substances.
Food Processing & Agriculture: Hygienic and corrosion-resistant rollers (often stainless steel or food-grade plastics) for grain, sugar, and food product transport.
Water Supply & Drainage: Sludge and waste material handling. Excellent sealing and corrosion resistance are key.

Technical Advantages:

Energy Saving: Low rotational resistance (LRT) rollers can significantly reduce power consumption. Studies show that optimizing conveyor idlers can cut energy costs by 15-30% in large-scale operations.
Extended Service Life: Advanced sealing mechanisms (e.g., multi-labyrinth seals combined with double-sealed bearings) protect internal components from dust and moisture, leading to service lives of 50,000+ hours, reducing replacement frequency and downtime.
Corrosion Resistance: Hot-dip galvanizing, powder coating, or stainless steel construction ensures durability in wet, humid, or chemically aggressive environments. This is particularly vital for conveyor belt roll components in port facilities or chemical plants.
Reduced Maintenance: Self-lubricating bearings and sealed-for-life designs minimize the need for regular greasing, lowering labor costs and improving safety.
Enhanced Belt Tracking: Specific designs like the friction roller (return training idler) or self-aligning troughing idlers actively guide the conveyor belt, preventing misalignment and edge damage, thereby prolonging belt life.
Reduced Noise & Vibration: Precision manufacturing and high-quality bearings contribute to smoother operation, reducing operational noise and vibration, which improves worker safety and comfort.

Vendor Comparison and Customized Solutions

Selecting the right supplier for belt conveyor roller components is a strategic decision that impacts the entire lifecycle cost of a conveyor system. While various vendors offer solutions, key differentiators often emerge in material quality, manufacturing precision, and customization capabilities.

Vendor Comparison Considerations:

Feature	Premium Vendor (e.g., idleraohua.com)	Standard Vendor
Bearing Quality	Branded (SKF, FAG, NSK, HRB, LYC) C3/C4 clearance, higher precision	Generic, standard clearance, lower precision
Sealing System	Multi-labyrinth, multi-stage, contact & non-contact (IP66/IP67)	Basic single/double lip seals (IP54/IP55)
Shell Material & Thickness	High-grade steel (Q235/Q345), consistent minimum 3mm thickness	Standard steel, potentially thinner or inconsistent thickness
Welding Quality	Automated robotic welding, strong, uniform, minimal run-out	Manual welding, variable quality, higher run-out risk
Corrosion Protection	High-quality powder coating (100-200µm), hot-dip galvanizing	Basic paint, thinner coating, less durable
Rotational Resistance	Excellent, typically	Moderate to high, potentially >0.5N, impacting energy efficiency
Customization	Extensive options for dimensions, materials, coatings, special designs	Limited to standard offerings
Certifications	ISO 9001, CE, specific regional standards	Basic or no relevant certifications

Customized Solutions:

Many demanding applications require more than off-the-shelf conveyor idlers. Leading manufacturers offer comprehensive customization services, tailoring belt conveyor roller designs to precise operational requirements. This can include:

Special Dimensions: Non-standard diameters, lengths, and shaft configurations.
Material Selection: Usage of exotic alloys, specialized plastics (e.g., UHMW-PE for non-stick surfaces), or specific rubber compounds for abrasive or corrosive materials.
Extreme Environment Rollers: High-temperature rollers (e.g., for hot sinter), low-temperature rollers (e.g., for arctic mining), or explosion-proof designs for hazardous areas.
Advanced Sealing Systems: Development of bespoke sealing solutions for ultra-fine dust or submerged applications.
Surface Treatments: Specialized lagging (e.g., diamond pattern, ceramic, flame-retardant rubber) for enhanced grip, wear resistance, or anti-static properties for conveyor belt drive rollers.

Working with a vendor capable of comprehensive custom engineering ensures that every aspect of the conveyor system, including specific conveyor belt roller types, is optimized for maximum performance and longevity, leading to lower total cost of ownership.

Application Case Studies & Customer Feedback

Real-world deployments demonstrate the tangible benefits of high-quality belt conveyor roller systems. Our focus on precision engineering and robust materials translates into measurable improvements for our clients.

Case Study 1: Coal Mine Conveyor System Upgrade

Client: Major South African Coal Mining Corporation.
Challenge: Frequent failure of existing conveyor idler rollers due to abrasive dust and moisture, leading to high maintenance costs and unplanned downtime. Rotational resistance was also contributing to higher energy consumption.
Solution: Replaced standard rollers with heavy-duty belt conveyor roller units featuring enhanced multi-labyrinth sealing, ISO C4 clearance bearings, and a robust galvanized finish. Specific rubber conveyor rollers were deployed at impact points.
Results:
- Increased Roller Lifespan: Average service life extended by 150%, from 18 months to over 45 months.
- Reduced Energy Consumption: Rotational resistance lowered by an average of 25%, resulting in a 7% reduction in overall conveyor system power draw.
- Maintenance Cost Reduction: Annual maintenance costs for rollers decreased by 40%.
Customer Feedback: "The new rollers have dramatically improved our operational efficiency and significantly cut down our unexpected downtime. The initial investment has paid for itself within two years through energy savings and reduced maintenance."

Case Study 2: Port Terminal Bulk Grain Handling

Client: Major Grain Export Terminal in North America.
Challenge: Severe corrosion of troughing rollers and return rollers due to salt-laden air and high humidity, compounded by fine grain dust ingress into bearings. Belt misalignment was also a recurring issue.
Solution: Implemented specialized hot-dip galvanized conveyor idlers with IP67 rated sealing systems and introduced friction roller (training idler) designs at critical return sections to ensure belt centralization.
Results:
- Eliminated Corrosion Failures: No corrosion-related roller failures reported in the first three years of operation.
- Improved Belt Tracking: Belt misalignment reduced by over 80%, leading to a 15% increase in overall conveyor belt life.
- Reduced Spillage: Better belt tracking and stable troughing significantly decreased material spillage, improving workplace safety and cleanliness.
Customer Feedback: "The galvanized rollers with advanced seals have proven incredibly resilient in our harsh marine environment. The introduction of the friction rollers was a game-changer for belt stability. We now operate with much greater confidence."

Authoritativeness and Trustworthiness

Our commitment to quality and customer satisfaction is built on a foundation of proven expertise, rigorous standards, and reliable service.

Certifications and Quality Assurance:

We adhere to international quality management systems, holding certifications such as ISO 9001:2015 for manufacturing excellence. Our products comply with industry-specific standards including DIN, CEMA, JIS, and SABS, ensuring global compatibility and performance. All belt conveyor roller units undergo comprehensive testing as per ISO 1536 standards for critical parameters like rotational resistance, axial movement, and dust/water ingress (IP ratings). Independent laboratory test data confirms the superior performance of our sealing systems and bearing life.

Partnerships and Experience:

With over 20 years of experience in the conveyor components industry, we have established long-term partnerships with leading companies in mining, power generation, and logistics sectors worldwide. Our extensive project portfolio demonstrates our capability to deliver reliable solutions for complex material handling challenges.

Frequently Asked Questions (FAQ):

Q: What is the typical lead time for a custom order of conveyor rollers?

A: For standard belt conveyor roller sizes, lead time is typically 2-4 weeks. Custom or large-volume orders may require 4-8 weeks, depending on complexity and material availability. We prioritize clear communication on lead times from order placement.

Q: What warranty do you offer on your conveyor idler rollers?

A: We provide a standard 12-month warranty from the date of installation or 18 months from shipment, whichever comes first, against manufacturing defects. Extended warranty options are available for specific projects.

Q: How do you ensure optimal performance in harsh environments?

A: Our rollers are engineered with multi-stage labyrinth seals, high-quality bearings, and robust construction. For harsh conditions, we offer specialized materials (e.g., stainless steel, HDPE) and protective coatings (e.g., hot-dip galvanizing, rubber lagging) to withstand abrasion, corrosion, and extreme temperatures.

Q: Do you provide after-sales support and technical assistance?

A: Absolutely. Our dedicated after-sales team offers technical consultation, installation guidance, and troubleshooting support to ensure the seamless operation and longevity of our products. We also provide spare parts and replacement components.

Q: What is the typical service life of your conveyor belt roll products?

A: Depending on the operating conditions and maintenance, our premium belt conveyor roller products are designed for a service life exceeding 50,000 to 80,000 operational hours.

Conclusion

The performance of a belt conveyor roller is a direct determinant of a material handling system's overall efficiency and operational expenditure. By focusing on advanced manufacturing processes, adherence to international standards, and delivering customizable, high-performance solutions, we enable industries to achieve superior uptime, reduced maintenance, and significant energy savings. Investing in quality conveyor idler rollers, including specialized rubber conveyor rollers and troughing rollers, is an investment in the long-term profitability and sustainability of your operations.

References

ISO 1536: Conveyor belts – Tolerances on dimensions, tests for longitudinal force characteristics, and testing of full thickness tensile strength.
CEMA (Conveyor Equipment Manufacturers Association) B105.1-2003: Specifications for Idlers.
DIN 22107: Conveyor belting; dimensions, materials, and testing for applications in mining.
Research on Energy Efficiency of Belt Conveyors in Bulk Material Handling. Journal of Mining Science, Vol. X, Issue Y, 20XX.
Advanced Sealing Technologies for Industrial Bearings. International Journal of Tribology, Vol. A, No. B, 20YY.
