Friction Roller

The friction wheel and end cover of the friction head of the friction roller are manufactured by stamping and welding technology.

CONTACT NOW PDF DOWNLOAD

Details

Tags

belt conveyor roller Detail Description

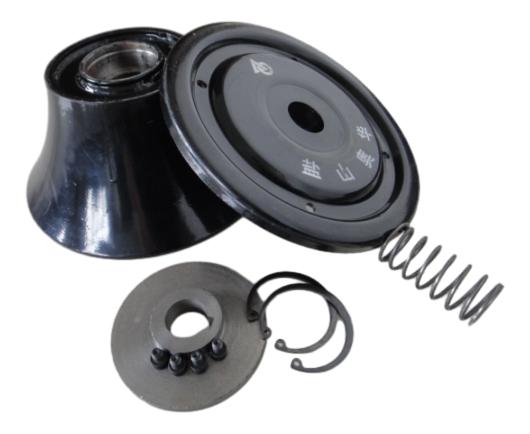

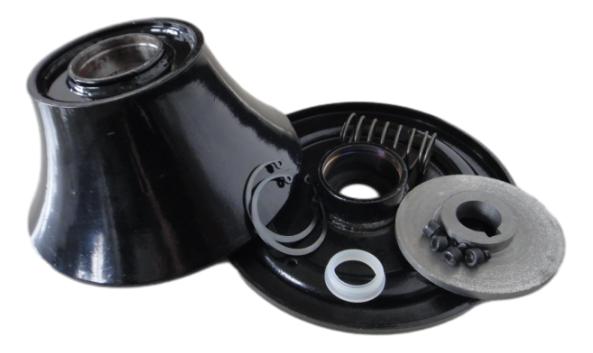

We design the solid belly workpiece instead of regular hollow structure, which greatly reduces the weight of the workpiece, and reduces the rotational inertia and rotational centrifugal force. and change double bearing single-end support to bearing double-end support in the friction head, so that the friction head installation support is reliable, stable rotation, energy saving and environmental protection, easy to replace, hard to damage. Patent No. (ZL 2014 20 424753.0)

conveyor idler rollers Product Specification

Product Details	Description	Order Services
Product Name: Friction Rollers	Rollers Material : Angle Steel、Channel Steel、Steel Pipe	Minimum order:1 piece
Origin Name： Hebei Province, China	Shaft Material:Q235B、1045 High precision cold drawn steel	Price: Negotiable

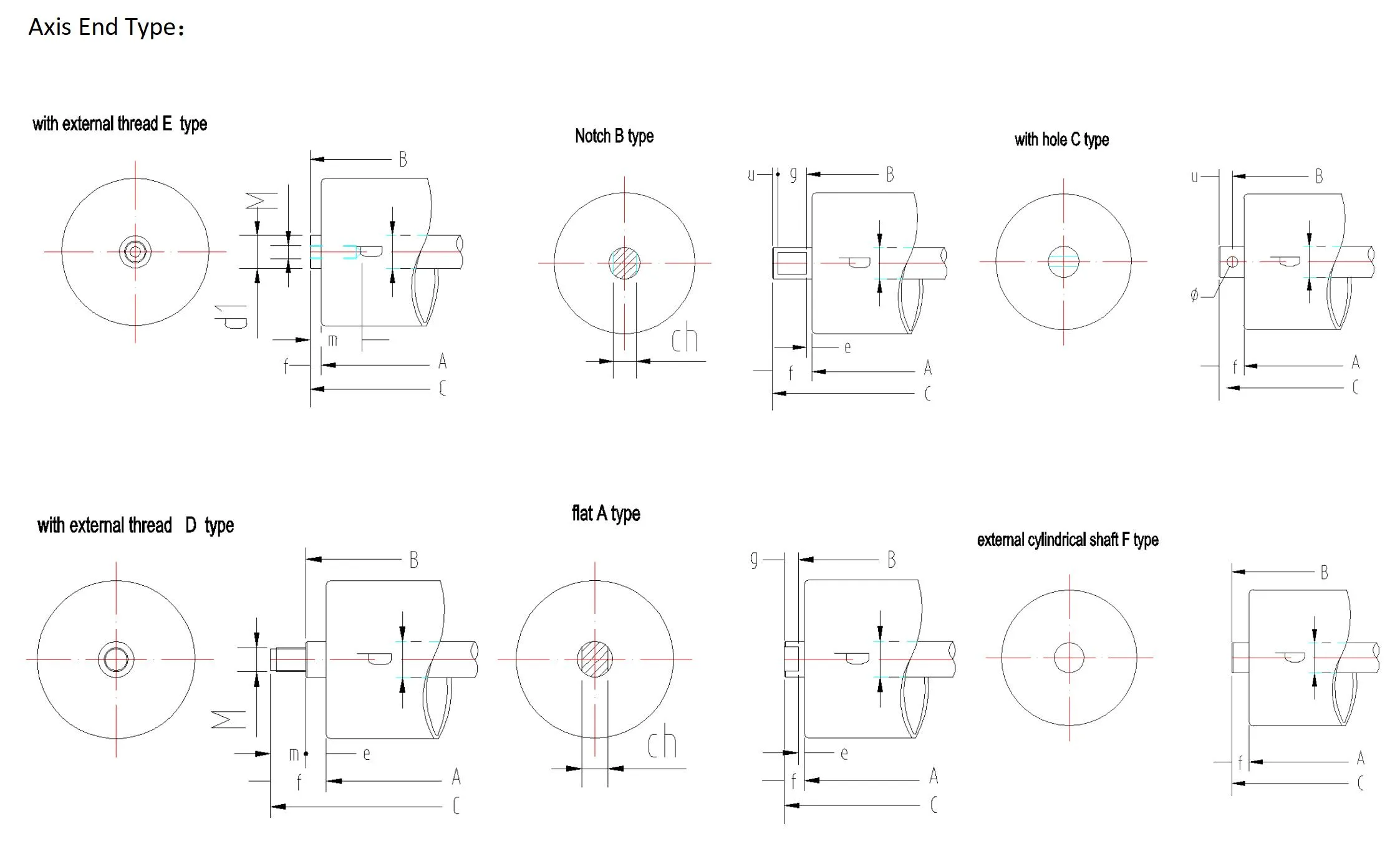

Brand Name: AOHUA	Shaft End Type:A、B、C、D、E、F or others	Packing: Fumigation-free plywood box, iron frame, pallet
Standard:CENA、ISO、DIN、JIS、DTII	Welding: carbon dioxide gas shielded welding	Delivery time:10-15days
Belt Width:400-2400MM	Welding Method: Automatic double end welding	Payment Term: TT、LC
Service life:30000 hours	Seal Type:AH 、JIS 、TR 、DTII	Shipping port: Tianjin Xingang、Shanghai、Qingdao
Wall Thickness Range Of Roller: 2.5~6mm	Bearing Brand:HRB、 ZWZ、 LYC、 SKF、 FAG 、NSK	Before and After service: support online、Video technical support
Diameter Range of Roller:48-219mm	Color:Black、Red、 Green 、Blue、 or according to orders
Diameter Range of Axle:17-60mm	Coating Process: Painting
Length Range of Roller:150-3500mm	Process: high frequency pressing molding
Bearing Type:6203-6312	Application: Coal mine, cement plant, crushing, power plant, steel mill, metallurgy, quarrying, printing, recycling industry and other conveying equipment
