Double-Center-Roller Idler Alignment

In the bustling landscape of industrial conveyor solutions, Yanshan Aohua Machinery Equipment Manufacture Limited Company has stood as a pioneer since its establishment in March 2007. Specializing in the research, development, manufacturing, and sales of belt conveyor systems and components, the company offers a diverse portfolio—from belt conveyors and impact beds to pulleys and alignment devices. Among its innovative lineup, the double-center-roller idler takes center stage, working in tandem with taper centering idler set and taper centring idler set to revolutionize belt alignment. These solutions address the age-old challenge of conveyor belt misalignment, combining cutting-edge design with robust functionality to ensure seamless material handling across industries.

The Ingenious Design of Double-Center-Roller Idler

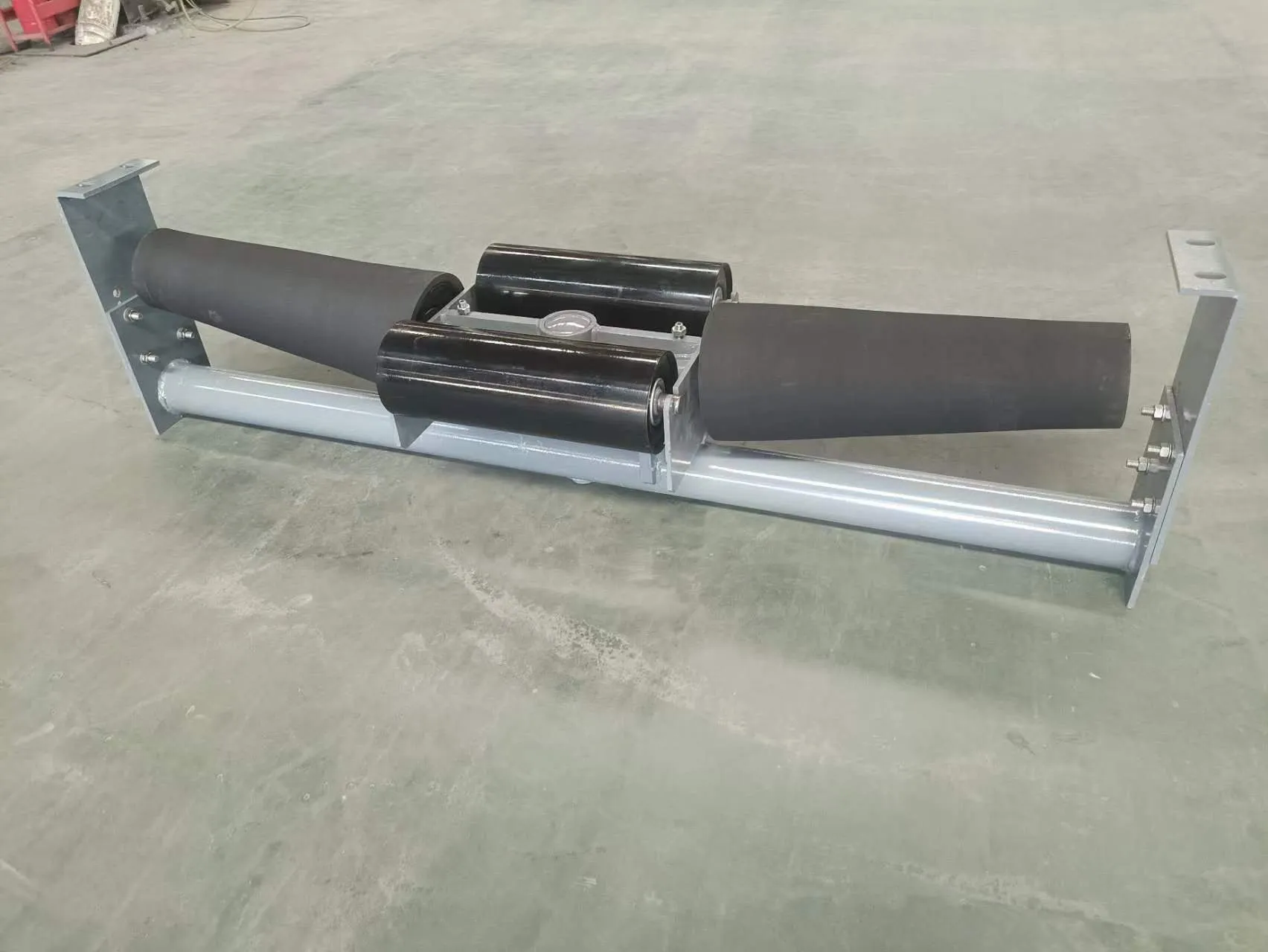

• Closed-Wrapping Angle Structure: The double-center-roller idler features a revolutionary design where four rollers form a tight, closed wrapping angle. This structure creates a stable support system for the conveyor belt, minimizing the risk of misalignment even under heavy loads. The two side rollers are crafted as conical rolls, covered with hot vulcanized casting rubber or polyurethane lagging. This lagging not only enhances wear resistance but also makes the rollers highly sensitive to stress, allowing them to react quickly to belt deviations.

• Adjustable Side Roller Height: A key feature of the double-center-roller idleris the slight adjustability of the side rollers' height. This adjustability enables the idler to transform rotational force into an aligning force based on the stress applied to the belt. When the belt starts to drift, the adjusted side rollers generate a corrective force that guides the belt back to its central path, ensuring smooth and consistent operation.

Taper Centering Idler Set and Taper Centring Idler Set Synergy

• Tapered Roller Technology: Both the taper centering idler setand taper centring idler set leverage tapered roller design to enhance belt alignment. The tapered shape creates a differential speed as the belt moves, generating a centering force that automatically adjusts the belt's position. This technology works in harmony with the double-center-roller idler to provide a comprehensive alignment solution.

• Complementary Functions:
  • The taper centering idler setis ideal for addressing significant belt misalignments, using its strong centering force to quickly realign the belt.
  • The taper centring idler setexcels in maintaining belt alignment during normal operation, providing continuous guidance to prevent minor deviations from escalating.
  • The double-center-roller idlercomplements these sets by offering a robust structural support and adjustable stress response, creating a triple threat against belt misalignment.

 Key Advantages of Alignment Solutions

1. Enhanced Wear Resistance: The hot vulcanized rubber or polyurethane lagging on the double-center-roller idler's side rollers significantly extends the idler's lifespan. This lagging resists abrasion from heavy materials, reducing maintenance and replacement costs.

1. Precision Belt Guidance: The combination of the double-center-roller idler's adjustable design and the taper centering/taper centring idler sets' tapered rollers provides unparalleled belt alignment precision. This precision minimizes belt wear and tear, leading to fewer production interruptions.

1. Versatile Adaptability: These alignment solutions are adaptable to various conveyor belt widths and load capacities. The double-center-roller idler's closed wrapping angle and the taper idler sets' differential speed technology make them suitable for a wide range of industrial applications.

Technical Specifications of Double-Center-Roller Idler

Installation and Maintenance Tips

• Professional Installation: Installing the double-center-roller idler, taper centering idler set, and taper centring idler setrequires expertise. Yanshan Aohua's trained technicians ensure proper alignment and secure mounting, maximizing the effectiveness of these solutions.

• Regular Inspections:
  • Check the lagging on the double-center-roller idlerfor signs of wear and tear.
  • Inspect the tapered rollers of the taper centering，taper centring idler setsfor alignment and rotation smoothness.
  • Verify the adjustability of the double-center-roller idler's side rollers to ensure optimal stress response.
• Lubrication: Lubricate moving parts according to the recommended schedule to reduce friction and maintain smooth operation of all idler sets.

Double-Center-Roller Idler FAQS

How Does the Double-Center-Roller Idler Improve Belt Alignment?

The double-center-roller idler's closed wrapping angle and adjustable side rollers create a stable support system that reacts to belt stress. The conical, lagged side rollers generate a corrective force when the belt deviates, guiding it back to the center with precision.

Can Taper Centering and Taper Centring Idler Sets Be Used Together?

Yes, these sets complement each other perfectly. The taper centering idler set addresses major misalignments, while the taper centring idler set maintains continuous alignment, working in tandem to ensure belt stability.

What Maintenance Is Required for the Rubber Lagging?

Regularly inspect the lagging for signs of wear, such as cracking or peeling. Clean the lagged surface to remove debris, and replace the lagging if significant wear is detected to maintain optimal performance.

How Adjustable Are the Side Rollers of the Double-Center-Roller Idler?

The side rollers can be slightly adjusted in height to fine-tune the idler's response to belt stress. This adjustment allows the idler to generate the appropriate aligning force based on the specific conveyor system's needs.

Are These Alignment Solutions Suitable for High-Speed Conveyors?

Yes, the double-center-roller idler, taper centering idler set, and taper centring idler set are designed to withstand high-speed operation. Their robust construction and precision engineering ensure reliable performance even at elevated conveyor speeds.

Discover the innovative double-center-roller idler, taper centering idler set, and taper centring idler set from Yanshan Aohua Machinery Equipment Manufacture Limited Company. Visit our official www.idleraohua.com  to explore our full range of conveyor solutions, view detailed technical specifications, and learn how our products can transform your material handling operations. Let us help you achieve seamless conveyor performance and maximum productivity!
