Understanding Conveyor Take-Up Assembly Key Components and Functionality

In the realm of material handling, conveyor systems have become indispensable across a myriad of industries. Among their vital components, the conveyor take-up assembly plays a crucial role in ensuring the efficient operation of these systems. This article aims to unravel the concept of conveyor take-up assemblies, detailing their components, functions, and importance in maintaining the overall performance of conveyor systems.

What is a Conveyor Take-Up Assembly?

A conveyor take-up assembly is a mechanical device designed to maintain tension in a conveyor belt. The primary function of the take-up is to absorb the elongation of the belt due to operational stresses and ambient conditions. By doing so, it ensures that the belt remains tight enough to prevent slippage while also enabling smooth operation. The take-up assembly comprises several components, including pulleys, bearings, frames, and tensioning mechanisms, each of which plays a specific role in the assembly's overall function.

Components of Conveyor Take-Up Assemblies

1. Frames and Structures The frame serves as the backbone of the take-up assembly. It houses and supports the pulleys and other components, providing a solid base for tensioning the belt. Typically, these frames are made from robust materials like steel or aluminum to withstand harsh operational conditions.

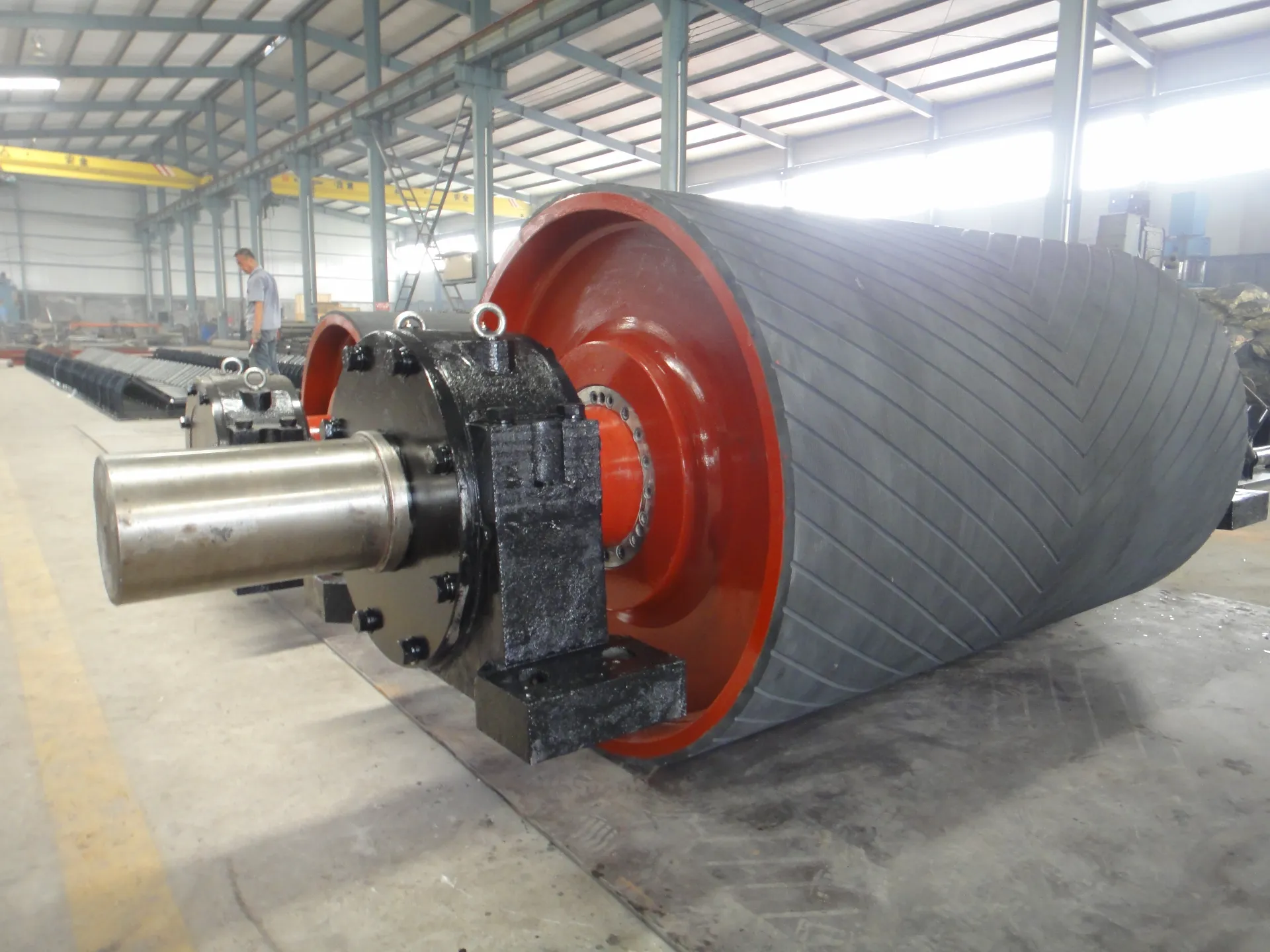

2. Pulleys The pulleys are critical components that facilitate the movement and tensioning of the conveyor belt. There are generally two types of pulleys in a take-up assembly the drive pulley and the take-up pulley. The take-up pulley adjusts its position based on the tension required in the belt, preventing slack and allowing for smooth conveying.

3. Tensioning Mechanisms There are various methods for applying tension in a conveyor take-up system, including - Gravity Take-Up This method utilizes the weight of the take-up pulley to provide tension. As the belt elongates, the pulley moves downward, maintaining the required tension. - Screw Take-Up In this system, a screw mechanism adjusts the position of the take-up pulley. By rotating the screw, operators can fine-tune the tension in the conveyor belt. - Hydraulic Take-Up This advanced method uses hydraulic cylinders to apply tension. This system allows for precise adjustments and is particularly beneficial in high-load applications.

4. Bearings Bearings support the pulleys, allowing for smooth rotation and minimizing friction. High-quality bearings are essential for the longevity and reliability of the take-up assembly.

Functions of Conveyor Take-Up Assemblies

The primary function of a conveyor take-up assembly is to maintain consistent tension in the conveyor belt. This is crucial for several reasons

1. Preventing Slippage and Misalignment Adequate tension prevents the belt from slipping on the pulleys, ensuring that materials are transported efficiently. It also mitigates the risk of misalignment, which can lead to increased wear and tear on both the belt and the conveyor system.

2. Accommodating Belt Elongation Over time, conveyor belts can elongate due to normal wear and operational stresses. The take-up assembly absorbs these changes by adjusting the tension dynamically, ensuring the belt operates effectively throughout its lifespan.

3. Reducing Maintenance Needs A well-functioning take-up assembly minimizes the need for frequent maintenance. By ensuring the belt remains properly tensioned, it reduces the risk of damage and increases the overall reliability of the conveyor system.

4. Supporting Efficient Material Transport Ultimately, the take-up assembly contributes to the overall efficiency of the conveyor system, allowing for consistent and reliable material transport. This is particularly important in high-speed or high-volume applications.

Conclusion

In summary, the conveyor take-up assembly is a vital component of any conveyor system. By maintaining proper belt tension, it plays a crucial role in preventing slippage, accommodating elongation, and supporting efficient material transport. Understanding the components and functionality of conveyor take-up assemblies helps in optimizing conveyor system design and operation, ultimately contributing to increased productivity and reduced operational costs in various industries. With advancements in technology, the design and efficiency of take-up assemblies continue to evolve, promising even better performance in the future.
