Belt Conveyor Parts & Functions

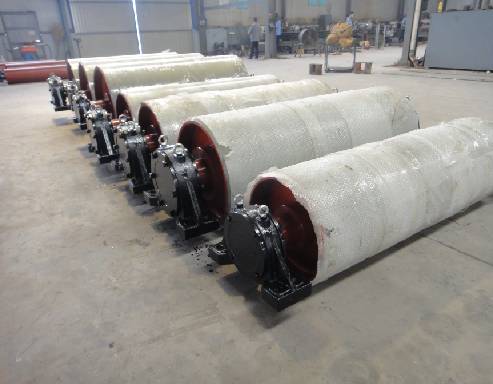

Belt Conveyors Essential Parts and Functions Belt conveyors are integral in a wide range of industries for their ability to transport materials efficiently over long distances. These systems consist of a continuous loop of belts that move materials from one point to another. The belts are powered by motors and rollers, which enable them to move at a controlled speed. In this article, we will discuss the essential parts and functions of belt conveyors. The Belt The belt is the heart of any conveyor system. It is made of materials such as rubber, plastic, or metal and is designed to withstand the rigors of constant use. Belts come in various widths and lengths to accommodate different conveying needs. The material being transported can be either loose or contained within a hopper or bin, which is positioned above the belt. Roller System The roller system consists of a series of rollers that support the belt and help it move smoothly. There are several types of rollers used in belt conveyors, including drive rollers, idler rollers, and take-up rollers. Drive rollers are powered by motors and are responsible for moving the belt. Idler rollers provide additional support and help maintain the belt's shape. Take-up rollers are used to tension the belt and keep it in place. Idler Frame The idler frame is a structure that holds the idler rollers in place. It is usually made of steel and is designed to withstand the weight of the belt and the materials being transported. The idler frame also provides support for the conveyor system and helps prevent sagging or damage to the belt The idler frame also provides support for the conveyor system and helps prevent sagging or damage to the belt The idler frame also provides support for the conveyor system and helps prevent sagging or damage to the belt The idler frame also provides support for the conveyor system and helps prevent sagging or damage to the beltbelt conveyor parts and functions. Drive Mechanism The drive mechanism is responsible for powering the belt conveyor. It typically consists of an electric motor that is connected to a reducer or gearbox. The motor turns the drive shaft, which in turn rotates the drive rollers. The drive mechanism must be designed to handle the load requirements of the conveyor system and ensure that the belt moves at a consistent speed. Bearing and Support Structures Bearings and support structures are critical components of belt conveyors. Bearings are used to reduce friction between the rollers and the shafts, allowing them to rotate smoothly. Support structures, such as brackets and hangers, are used to secure the bearings and rollers in place. They must be strong enough to withstand the weight of the belt and the materials being transported. Control Systems Belt conveyors often require control systems to regulate their operation. These systems can include sensors, switches, and variable frequency drives (VFDs) that allow operators to monitor and adjust the conveyor's speed and direction. Control systems can also be integrated with other machinery or processes to automate material handling operations. In conclusion, belt conveyors are versatile and essential equipment in many industries. Their functionality is determined by the interplay of key components, including the belt, roller system, idler frame, drive mechanism, bearing and support structures, and control systems. Understanding these parts and their functions is crucial for selecting, installing, and maintaining efficient and reliable conveyor systems.
