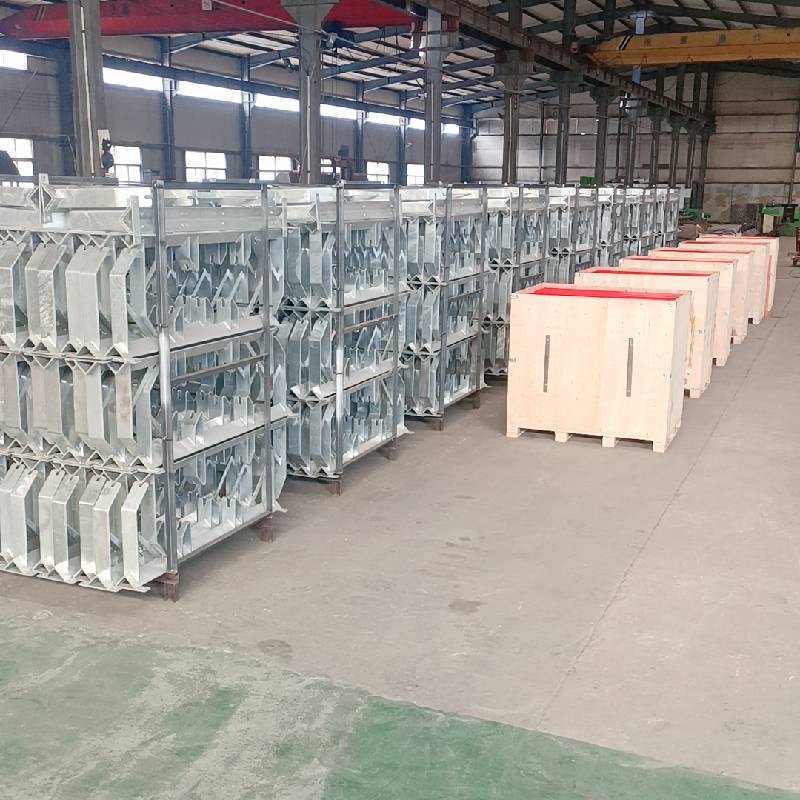

Understanding the idler frame in Modern Conveyor Systems

The efficient operation of bulk material handling systems relies heavily on robust and precisely engineered components. Among these, the idler frame stands as a foundational element, critical for supporting the conveyor belt and its load, ensuring smooth material flow, and preventing operational disruptions. This piece explores the technical intricacies, industry applications, and strategic advantages of advanced idler frame solutions, emphasizing their role in optimizing performance and extending the service life of conveyor systems across various demanding environments.

Modern industrial trends underscore a growing demand for components that offer not just reliability but also enhanced energy efficiency, reduced maintenance, and superior durability. The evolution of the idler frame reflects these priorities, moving towards designs and materials that can withstand extreme conditions while contributing to lower operational costs. As industries strive for higher productivity and sustainable practices, selecting the right idler frame becomes a strategic decision, impacting everything from belt longevity to overall system uptime.

Manufacturing Process of High-Performance Idler Frames

The production of a reliable idler frame involves a multi-stage, precision-driven manufacturing process, integrating material science with advanced fabrication techniques. Each step is meticulously controlled to ensure the final product meets stringent performance and durability requirements.

1. Material Selection & Preparation

High-grade structural steel, such as Q235B, S235JR, or equivalent ASTM A36, is predominantly used for its superior tensile strength and weldability. For corrosive environments, galvanized steel or stainless steel alloys are selected. Materials undergo rigorous inspection for chemical composition and mechanical properties to ensure compliance with international standards like EN 10025 or ASTM A6.

2. Precision Cutting & Forming

Components of the idler frame, including the cross members, legs, and brackets (e.g., conveyor roller mounting brackets, conveyor roller bracket), are cut to precise dimensions using CNC laser cutting or plasma cutting machines. This ensures high accuracy and minimal material waste. Subsequent processes like CNC bending and forming shape the cut components, maintaining tight tolerances crucial for structural integrity.

3. Welding & Assembly

The various components are assembled and joined using advanced welding techniques, primarily MIG (Metal Inert Gas) or TIG (Tungsten Inert Gas) welding. Skilled welders follow detailed weld procedures, ensuring full penetration and defect-free joints. Robotic welding is often employed for consistency and efficiency, particularly for standard designs such as the carrying idler frame or carrying frame. Post-weld inspection, including visual and occasionally ultrasonic testing, verifies weld quality.

4. Surface Treatment & Coating

To enhance corrosion resistance and extend service life, frames undergo surface preparation (e.g., shot blasting) followed by either hot-dip galvanizing or high-performance powder coating. Hot-dip galvanizing provides a robust zinc layer, compliant with ISO 1461, offering superior protection in harsh, outdoor environments. Powder coating offers excellent aesthetics and additional resistance to abrasion and chemical exposure.

5. Quality Control & Testing

Every batch of idler frame components is subjected to rigorous quality control. This includes dimensional verification using CMM (Coordinate Measuring Machine), material hardness testing, coating thickness measurement, and functional checks to ensure proper fit with conveyor rollers and conveyor roller stands. Compliance with international standards such as ISO 9001 (Quality Management), CEMA (Conveyor Equipment Manufacturers Association), and DIN 22107 (German Industrial Standard) is strictly adhered to, guaranteeing product reliability and safety.

Figure 1: Manufacturing process of an Idler Frame

Technical Specifications and Industry Standards

The performance of an idler frame is defined by a set of critical technical parameters and adherence to recognized industry standards. These specifications dictate compatibility, load-bearing capacity, and environmental suitability.

Key Technical Parameters:

• Belt Width Compatibility: Ranging from 400mm to 2800mm, ensuring adaptability across various conveyor systems.
• Trough Angle: Common angles include 20°, 35°, 45°, and custom angles for specific material containment requirements.
• Roller Diameter: Typically compatible with roller diameters from 89mm to 194mm, essential for supporting conveyor belt drive rollers.
• Material Grade: High-tensile steel (e.g., ASTM A36, Q235B) for structural integrity, with options for stainless steel or corrosion-resistant alloys.
• Surface Treatment: Hot-dip galvanized (min. 65µm thickness per ISO 1461) or powder coated (min. 80µm thickness) for enhanced durability.
• Load Capacity: Engineered to withstand dynamic and static loads encountered during continuous operation, categorized by CEMA classes.
• Operating Temperature: Designed to perform reliably in temperatures ranging from -30°C to +80°C, with specialized versions for extreme conditions.

Applicable Industry Standards:

• ISO 9001:2015: Quality Management Systems for consistent product quality.
• CEMA Standards (e.g., CEMA B, C, D, E): Guidelines for conveyor components, dimensions, and load ratings.
• DIN 22107: German standard for conveyor idlers and frames.
• AS 1334: Australian standards for conveyor belting and associated equipment.
• SABS (South African Bureau of Standards): Relevant for mining and heavy industries in Africa.

Product Specification Table: Standard Carrying Idler Frame

Application Scenarios and Technical Advantages

The versatility and robust design of the idler frame make it indispensable across a wide spectrum of heavy industries. Its ability to perform under arduous conditions while contributing to operational efficiencies is a key advantage.

Typical Application Scenarios:

• Mining & Aggregates: Supporting heavy loads of coal, ore, aggregates in underground and surface mining operations. Essential for primary, secondary, and tertiary crushing and conveying lines.
• Port & Terminal Operations: Handling bulk cargoes such as grains, minerals, and fertilizers on long-distance jetty conveyors and ship loaders/unloaders.
• Power Generation: Transporting coal and biomass fuels to boiler houses in thermal power plants.
• Cement Production: Conveying limestone, clinker, gypsum, and finished cement products within plant facilities.
• Steel Manufacturing: Moving iron ore, coke, and flux materials to blast furnaces and other processing units.
• Petrochemical & Chemical Plants: Transporting various raw materials and finished granular products, requiring corrosion-resistant solutions.
• Water Supply & Drainage: Less common for bulk material, but specialized applications may exist for sludge or filter cake handling.

Technical Advantages:

• Enhanced Belt Support & Stability: Precision-engineered frames ensure optimal belt troughing, minimizing spillage and enhancing belt tracking. This reduces wear on the conveyor belt and components like the conveyor impact bar.
• Durability & Extended Service Life: Constructed from robust materials with advanced corrosion protection (hot-dip galvanizing, powder coating), these frames withstand abrasive materials, harsh weather, and chemical exposure, ensuring a typical service life exceeding 5-8 years.
• Energy Efficiency: Optimized design reduces friction, which in turn lowers power consumption for the conveyor system, contributing to significant energy savings over time.
• Reduced Maintenance & Downtime: The robust construction and minimal deflection reduce the frequency of maintenance, preventing costly unplanned stoppages and improving overall operational uptime.
• Ease of Installation & Replacement: Modular design and standardized dimensions facilitate quick and straightforward installation and replacement of conveyor roller mounting brackets and entire frames, minimizing labor costs.
• Safety: Stable support and proper belt alignment contribute to a safer working environment by reducing the risk of belt misalignment, material spillage, and potential hazards.

Figure 2: Idler frames in a typical mining application

Vendor Comparison and Customized Solutions

Choosing the right supplier for idler frame solutions is crucial for long-term operational success. A comprehensive evaluation involves assessing product quality, manufacturing capabilities, customization options, and after-sales support.

Vendor Comparison: Aohua vs. Generic Market Offerings

Customized Solutions: Tailoring to Specific Needs

Recognizing that no two conveyor systems are identical, Aohua provides bespoke idler frame solutions tailored to precise operational requirements. This includes:

• Non-Standard Dimensions: Custom frame lengths, widths, and mounting configurations for unique conveyor structures.
• Specialized Trough Angles: Adapting to specific material characteristics or capacity demands.
• Corrosion-Resistant Materials: Utilizing stainless steel grades (e.g., 304, 316) or specialized coatings for highly aggressive environments (e.g., chemical plants, coastal operations).
• Heavy-Duty Applications: Reinforced designs for extreme load capacities and impact zones, often incorporating specific conveyor impact bar support.
• Ease of Installation Features: Designing frames with specific bolt patterns or quick-release mechanisms to minimize installation time and effort.
• Modular and Integrated Designs: Solutions that seamlessly integrate with existing conveyor components, including specialized conveyor roller stands.

Figure 3: Customized Idler Frame designs for varied industrial requirements

Application Case Studies & Customer Trust

Case Study 1: Enhanced Productivity at a Major Coal Mine

Client: Leading Coal Mining Corporation, Australia
Challenge: The client faced persistent issues with premature wear of conveyor belts and frequent unplanned downtime due to inadequate idler frame support, leading to belt misalignment and spillage in a high-capacity coal transportation line. Existing frames lacked sufficient rigidity and corrosion resistance in the harsh, humid mine environment.

Solution: Aohua engineered and supplied custom heavy-duty idler frame units, hot-dip galvanized to ISO 1461 standards, with reinforced cross-members and CEMA Class E load ratings. These frames were designed with a precise 45° trough angle to optimize coal containment and integrated with robust conveyor roller bracket systems.

Results: Within six months of installation, the client reported a 25% reduction in belt wear, a 30% decrease in material spillage, and a significant reduction in maintenance interventions. The enhanced stability provided by the Aohua frames extended the overall service life of the conveyor system, contributing to an estimated 15% increase in operational efficiency and substantial cost savings. The frames have now been in continuous operation for over 4 years without significant structural degradation.

Case Study 2: Optimized Grain Handling at a Port Terminal

Client: International Agri-Commodities Logistics Hub, Europe
Challenge: The port's grain handling conveyors required frames that could withstand saline atmospheric conditions and continuous, high-volume material flow, while minimizing friction to preserve sensitive grain quality. Existing frames showed rapid corrosion and roller misalignment, leading to increased power consumption and grain damage.

Solution: Aohua provided a complete upgrade solution comprising specialized carrying idler frame designs, utilizing marine-grade hot-dip galvanization and precision-machined conveyor belt drive rollers. The frames were designed for minimal deflection and optimal roller alignment, reducing belt sag and friction.

Results: The new frames led to an immediate 8% reduction in power consumption for the main conveyor lines, attributed to lower friction. Material spillage was virtually eliminated, improving cleanliness and reducing product loss. The superior corrosion resistance has significantly prolonged the lifespan of the frames, demonstrating a projected 3-year extension in maintenance cycles compared to previous installations. The client cited Aohua's adherence to ISO standards and verifiable test data as key factors in their decision.

Frequently Asked Questions (FAQ)

Q1: What is the typical service life of an Aohua idler frame?

A1: Under normal operating conditions and with proper maintenance, our idler frame products are designed for a service life of 5 to 8 years. In less demanding applications or with premium coatings, this can extend even further. Actual life depends on material conveyed, operational hours, environmental conditions, and maintenance regularity.

Q2: Can Aohua provide frames for non-standard belt widths or trough angles?

A2: Yes, absolutely. We specialize in customized solutions. Our engineering team can design and manufacture idler frame units to accommodate unique belt widths, specialized trough angles, specific load requirements, and particular environmental challenges. Please provide your specifications for a tailored quotation.

Q3: What are the lead times for orders?

A3: Standard orders typically have a lead time of 3-5 weeks from order confirmation, depending on quantity and current production schedule. Customized or large-volume orders may require 6-8 weeks. We strive to meet urgent requirements and recommend discussing your project timeline with our sales team for accurate estimates.

Q4: What warranty does Aohua offer on its idler frame products?

A4: We offer a standard 12-month warranty from the date of shipment against manufacturing defects and material failures. Our commitment to quality ensures that our products meet or exceed specified performance parameters. Detailed warranty terms are available upon request.

Q5: How does Aohua ensure product quality and adherence to standards?

A5: Our quality assurance process adheres strictly to ISO 9001:2015. We conduct multi-stage inspections, including raw material verification, in-process checks (e.g., welding quality, dimensional accuracy), and final product testing (e.g., coating thickness, load simulation). All products conform to relevant international standards like CEMA, DIN, and AS, ensuring consistent high quality and reliability.

Lead Time, Warranty, and After-Sales Support

Lead Time & Fulfillment

Aohua operates with optimized production workflows to ensure timely delivery. For standard idler frame configurations, typical lead times range from 3 to 5 weeks for manufacturing and preparation. For large-scale projects or highly customized solutions, a dedicated project manager will provide a detailed timeline, typically ranging from 6 to 8 weeks, ensuring all specifications are met without compromising quality. We maintain robust logistics partnerships to facilitate efficient global shipping and on-time fulfillment.

Warranty Commitments

All Aohua idler frame products are backed by a comprehensive 12-month warranty against defects in materials and workmanship, starting from the date of shipment. This warranty underscores our confidence in our manufacturing processes and the durability of our products. In the unlikely event of a covered defect, Aohua is committed to repair or replacement as per our warranty policy, ensuring minimal disruption to your operations.

Dedicated Customer Support

Our commitment extends beyond product delivery. Aohua provides expert after-sales support to ensure the continuous, optimal performance of your conveyor systems. Our support services include:

• Technical Assistance: Access to experienced engineers for troubleshooting, installation guidance, and operational advice.
• Spare Parts Management: Efficient supply chain for genuine replacement parts to minimize downtime.
• On-Site Consultation (where applicable): For complex installations or performance optimization, our specialists can provide on-site support.
• Responsive Communication: Dedicated channels for inquiries, ensuring prompt and effective solutions.

For support, please contact us via email at sales@idleraohua.com or call our technical helpline at [Your Phone Number Here].

References

1. Conveyor Equipment Manufacturers Association (CEMA). Belt Conveyors for Bulk Materials, 7th Edition. (https://www.cemanet.org)
2. International Organization for Standardization (ISO). ISO 9001:2015 - Quality management systems. (https://www.iso.org)
3. Deutsches Institut für Normung (DIN). DIN 22107 - Conveyor idlers, idler frames, and support structures. (https://www.din.de)
4. ASTM International. ASTM A36/A36M - Standard Specification for Carbon Structural Steel. (https://www.astm.org)
5. Galvanizers Association. The Hot Dip Galvanizing Process and Standards. (https://www.galvanizing.org.uk)
