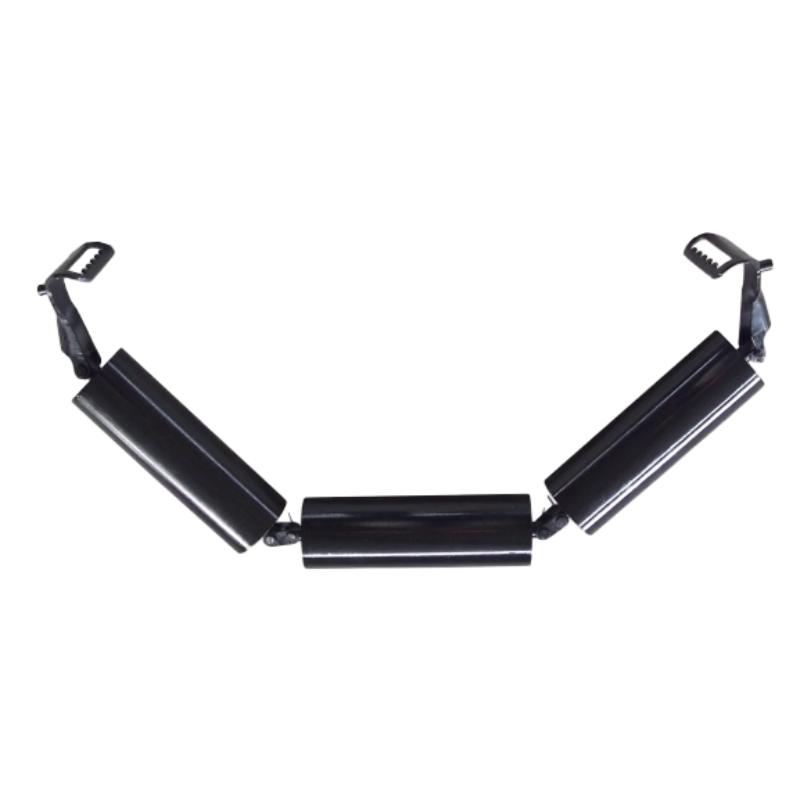

Idadoro Idler

Idaduro Idler jẹ lilo fun atilẹyin ẹgbẹ adiro ti gbigbe igbanu gbigbe.

Kan si Bayi PDF DOWNLOAD

Awọn alaye

Awọn afi

garland idler Apejuwe alaye

Awọn anfani ti awọn alaigbagbọ ti a fi kọorí:

Fast and easy to install and maintain, extending the life time of rollers and components,

Which also bring higher performance and running speed for wider belts,

Ati dinku ipa lori igbanu nitori gbigba aapọn to dara julọ,

Ati eyi ti yoo jẹ dara lati wa awọn ikojọpọ.

idlers and rollers Ọja Specification

Awọn alaye ọja	Apejuwe	Awọn iṣẹ ibere
Orukọ ọja: Idaduro Idler	Ohun elo fireemu: Irin Igun, Irin ikanni, Irin Pipe	Ibere ti o kere julọ: 1 nkan
Orukọ Oti: Hebei Province, China	Standard Ohun elo:Q235B,Q235A	Iye: Idunadura
Orukọ Brand: AOHUA	Sisanra odi: 6-12mm tabi ni ibamu si awọn aṣẹ	Iṣakojọpọ: Apoti itẹnu ti ko ni fumigation, fireemu irin, pallet
Standard:CEMA,ISO,DIN,JIS,DTII	Alurinmorin: Adalu Gaasi Arc Alurinmorin	Akoko ifijiṣẹ: 10-15days
Iwọn igbanu: 400-2400mm	Ọna Alurinmorin: Robot Welding	Akoko isanwo: TT, LC
Akoko igbesi aye: Awọn wakati 30000	Awọ: Dudu, Pupa, Alawọ ewe, Buluu, tabi ni ibamu si awọn aṣẹ	Ibudo gbigbe: Tianjin Xingang, Shanghai, Qingdao
Iwọn Iwọn Odi Ti Roller: 2.5 ~ 6mm	Ilana Ibo:Electrostatic powder spraying, Painting, Hot-Dip-Galvanizing
Iwọn ila opin ti Roller: 48-219mm	Ohun elo: Mimu ti edu, ọgbin simenti, fifun pa, ile-iṣẹ agbara, ọlọ irin, irin-irin, quarrying, titẹ sita, ile-iṣẹ atunlo ati awọn ohun elo gbigbe miiran
Iwọn ila opin ti Axle: 17-60mm	Ṣaaju ati Lẹhin iṣẹ: atilẹyin lori ayelujara, atilẹyin imọ-ẹrọ fidio
Ti nso Brand: HRB, ZWZ, LYC, SKF, FAG, NSK

steel idler rollers Ọja Awọn paramita

Major Parameter Table for Suspension Idler
Standard Opin		Iwọn Gigun (mm)	Ti nso Iru (min-max)	Odi-Sisanra ti Roller (mm)
mm	inch	Iwọn Gigun (mm)	Ti nso Iru (min-max)	Odi-Sisanra ti Roller (mm)
63.5	2 1/2	150-3500	6204	2.0-3.75
76	3	150-3500	6204 205	3.0-4.0
89	3 1/3	150-3500	6204 205	3.0-4.0
102	4	150-3500	6204 205 305	3.0-4.0
108	4 1/4	150-3500	6204 205 305 306	3.0-4.0
114	4 1/2	150-3500	6205 206 305 306	3.0-4.5
127	5	150-3500	6204 205 305 306	3.0-4.5
133	5 1/4	150-3500	6205 206 207 305 306	3.5-4.5
140	5 1/2	150-3500	6205 206 207 305 306	3.5-4.5
152	6	150-3500	6205 206 207 305 306 307 308	3.5-4.5
159	6 1/4	150-3500	6205 206 207 305 306 307 308	3.0-4.5
165	6 1/2	150-3500	6207 305 306 307 308	3.5-6.0
177.8	7	150-3500	6207 306 307308 309	3.5-6.0
190.7	7 1/2	150-3500	6207 306 307308 309	4.0-6.0
194	7 5/8	150-3500	6207 307 308 309 310	4.0-6.0
219	8 5/8	150-3500	6308 309 310	4.0-6.0
