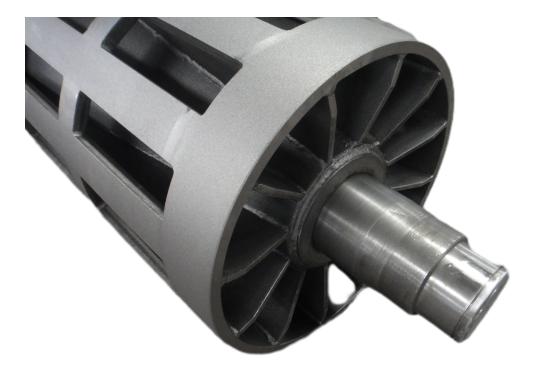

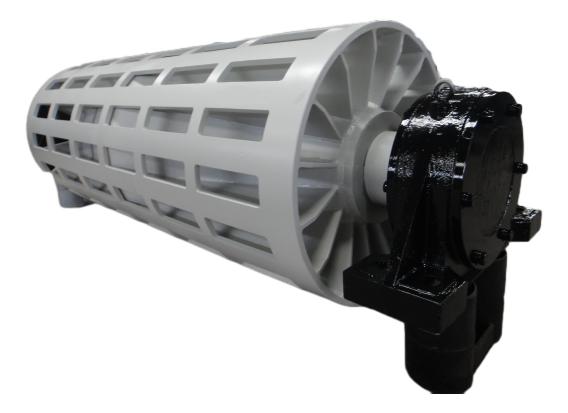

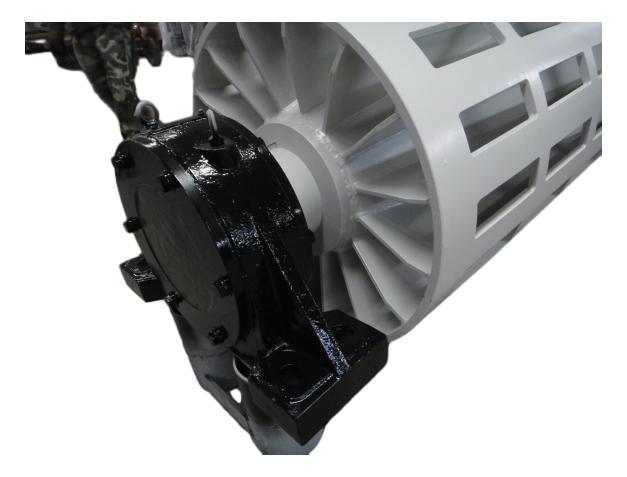

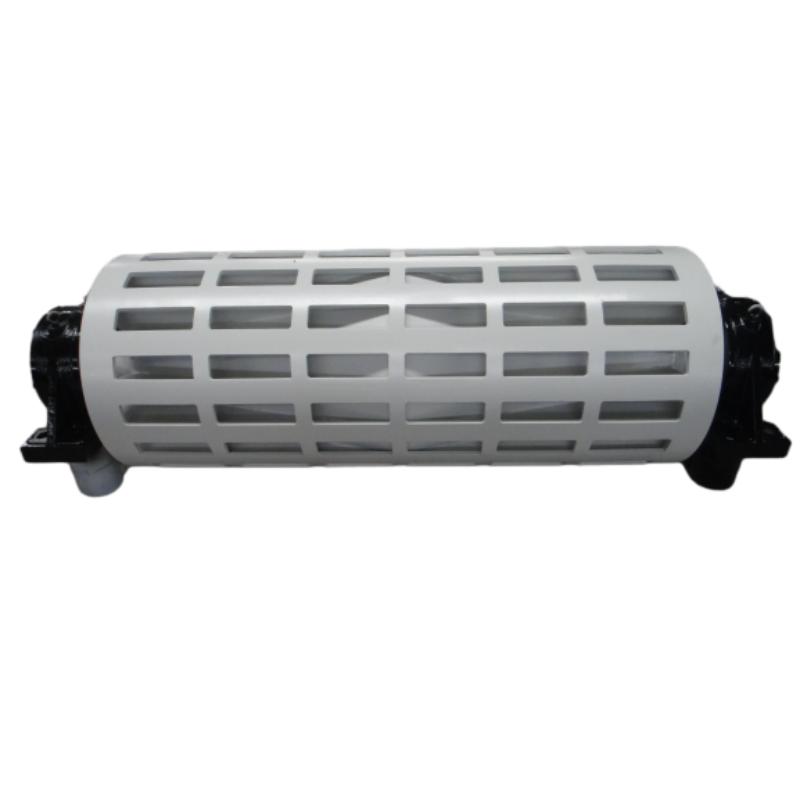

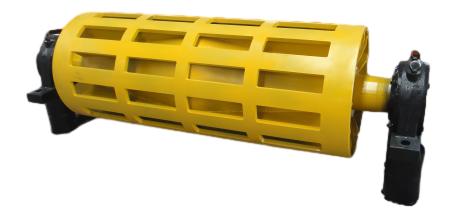

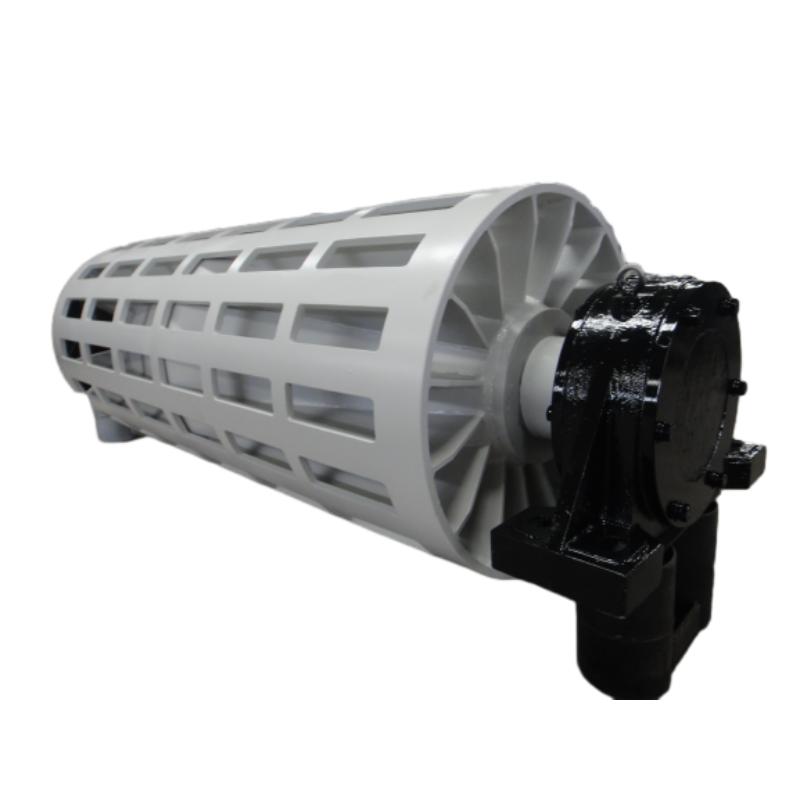

سلګینګ پللی (درنه دنده)

سلیګینګ پللی د سلیګ او موادو پاکول دي چې د لیږدونکي بیلټ غیر کاري سطح ته ځړول شوي. ډرم د فولادو پلیټ سره ویلډ شوی ، کوم چې د پراخه بیلټ ، درانه بار او لوی لیږد ظرفیت سره په لیږدونکو باندې پلي کیږي.

جزیات
ټګونه

belt conveyor pulleyتفصیل توضیحات



Slagging Pulley usually is installed at the position of tail pulley, tension take-up pulley or snub pulley,Its function is to remove the material stuck to the conveyor belt, The removed material will fall down from the inner cone surface of the pulley.



The structural design of slagging pulley is unique .The pulley drum is welded by automatic welding equipment to ensure high welding quality and high welding strength . The drum is annealed at medium temperature, the residual stress is small, and the service life is long.

ceramic lagging pulley
conveyor belt pulley types
conveyor drum
conveyor pulley



conveyor pulley laggingمحصول پیرامیټونه



د بیلټ لیږدونکي سلیګینګ پلی لپاره پیرامیټونه (درنه دنده)

د ګولۍ ډول

د کمربند عرض (mm)

بهر قطر (mm)

اوږدوالی(mm)

بې موټر چلول

پلۍ

500

500~630

د ډرم اوږدوالی په پرتله ډیر دی

 the width of the belt 150-200mm

650

500~630

800

500~1000

1000

500~1600

1200

500~1600

1400

500~1600

1600

500~1600

1800

500~1800

2000

500~1800

2200

630~1800

2400

800~2000

مشخصات د غوښتنو سره سم تنظیم کیدی شي



conveyor pulley typesDiagrammatic Drawings and Parameters

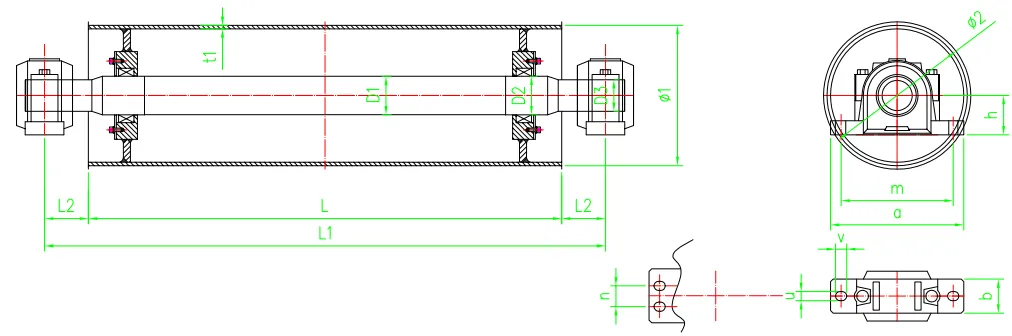

Diagrammatic Drawings and Parameters for Slagging Pulley(Heavy Duty):

types of pulley in conveyor belt

د کمربند عرض

(mm)

Φ1

Φ2

L

L1

L2

D1

D2

D3

t1

a

m

h

b

n

u

v

Remarks
