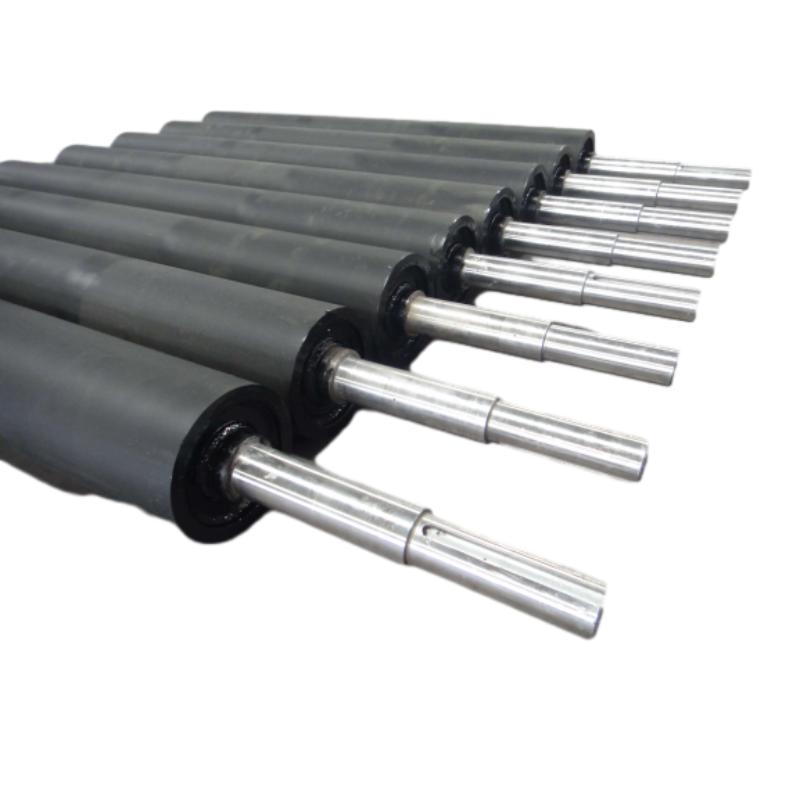

Polyurethane Roller

The polyurethane roller is coated with wear-resistant polyurethane on the surface of the metal roller, so as to protect the belt running stability, shock absorption, wear resistance and increase the service life of the roller.

CONTACT NOW PDF DOWNLOAD

Details

Tags

plastic roller Product Specification

Product Details	Description	Order Services
Product Name: Polyurethane Rollers	Rollers Material :Angle Steel、Channel Steel、Steel Pipe	Minimum order:1 piece
Origin Name：Hebei Province,China	Shaft Material :Q235B、1045 High precision cold drawn steel	Price:Negotiable
Brand Name:AOHUA	Shaft End Type:A、B、C、D、E、F or others	Packing:Fumigation-free plywood box, iron frame, pallet
Standard:CENA、ISO、DIN、JIS、DTII	Welding:carbon dioxide gas shielded welding	Delivery time:10-15days
Belt Width:400-2400MM	Welding Method:Automatic double end welding	Payment Term:TT、LC
Service life:30000 hours	Seal Type:AH 、JIS 、TR 、DTII	Shipping port:Tianjin Xingang、Shanghai、Qingdao
Wall Thickness Range Of Roller: 2.5~6mm	Bearing Brand:HRB、 ZWZ、 LYC、 SKF、 FAG 、NSK	Before and After service: support online、Video technical support
Diameter Range of Roller:48-219mm	Color:Black、Red、 Green 、Blue、 or according to orders
Diameter Range of Axle:17-60mm	Coating Process:Painting
Length Range of Roller:150-3500mm	Impact material:NR+Synthetic additive、polyurethane
Bearing Type:6203-6312	Impact material characteristic selection:Flame retardant anti-static and non-flame retardant common type
	Impact material forming process:Rubber ring cold pressing or Hot vulcanization
	Application: Coal mine, cement plant, crushing, power plant, steel mill, metallurgy, quarrying, printing, recycling industry and other conveying equipment
