Customized Roller

The roller is an important part of the belt conveyor, which can be customized according to different application scene and requirement. we will process or produce as long as clients provide drawings or samples.

CONTACT NOW PDF DOWNLOAD

Details

Tags

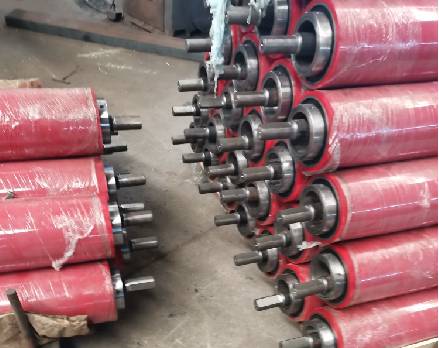

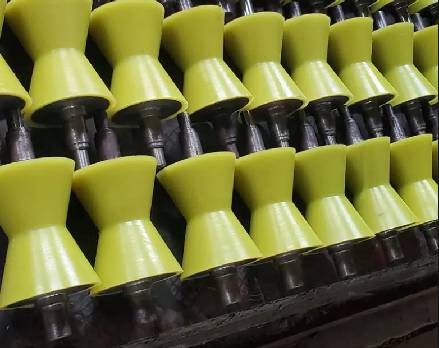

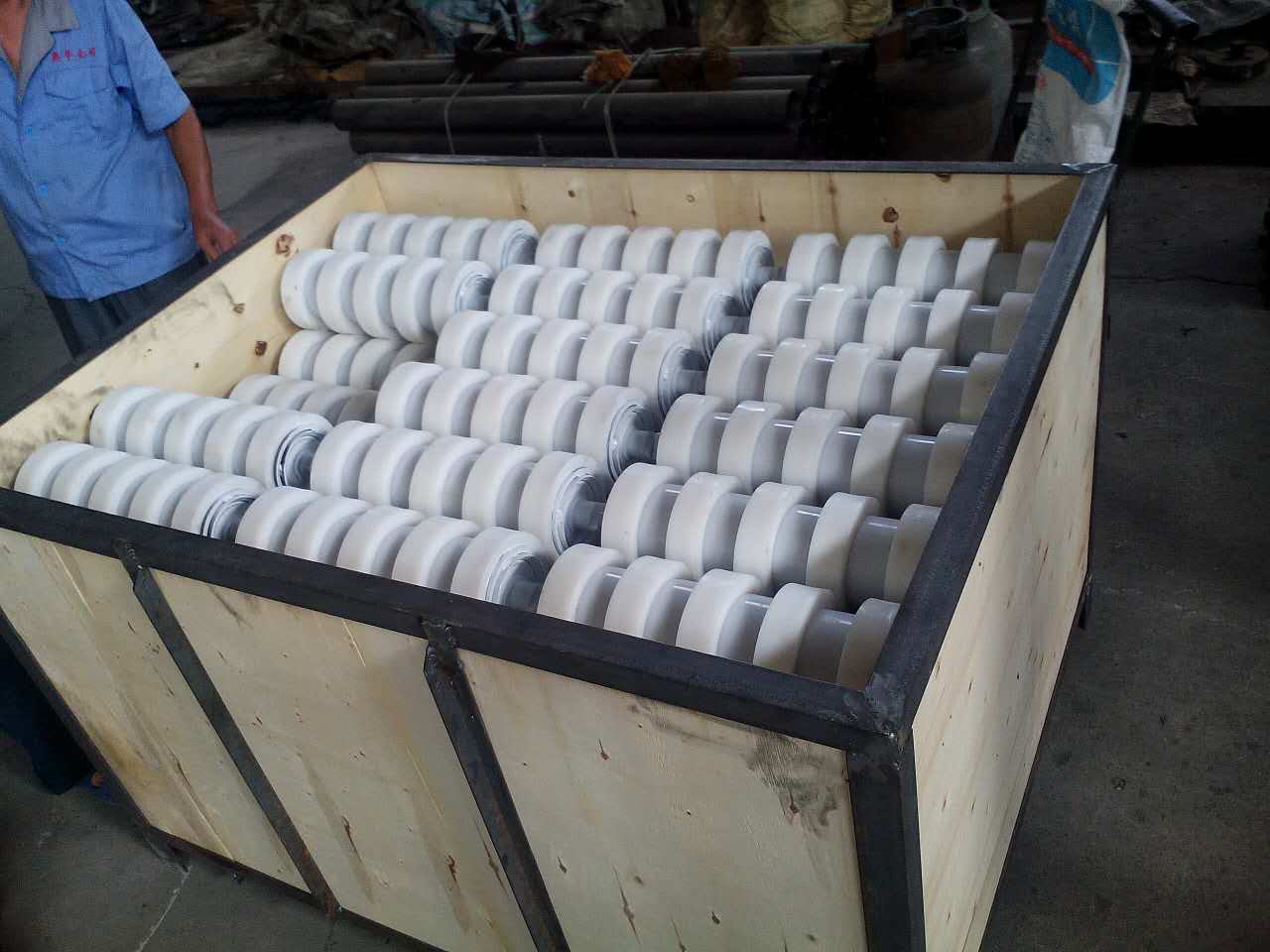

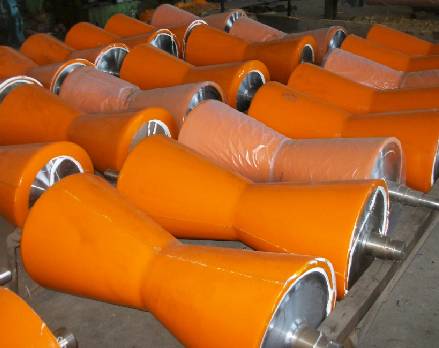

Product display

Product Specification

Product Details	Description	Order Services
Product Name:Customized Rollers	Rollers Material :Angle Steel、Channel Steel、Steel Pipe	Minimum order:1 piece
Origin Name：Hebei Province,China	Shaft Material :Q235B、1045 High precision cold drawn steel	Price:Negotiable
Brand Name:AOHUA	Shaft End Type:A、B、C、D、E、F or others	Packing:Fumigation-free plywood box, iron frame, pallet
Standard:CENA、ISO、DIN、JIS、DTII	Welding:carbon dioxide gas shielded welding	Delivery time:10-15days
Belt Width:400-2400MM	Welding Method:Automatic double end welding	Payment Term:TT、LC
Service life:30000 hours	Seal Type:AH 、JIS 、TR 、DTII	Shipping port:Tianjin Xingang、Shanghai、Qingdao
Wall Thickness Range Of Roller: 2.5~6mm	Bearing Brand:HRB、 ZWZ、 LYC、 SKF、 FAG 、NSK	Before and After service: support online、Video technical support
Diameter Range of Roller:48-219mm	Color:Black、Red、 Green 、Blue、 or according to orders
Diameter Range of Axle:17-60mm	Coating Process:Painting
Length Range of Roller:150-3500mm	Application: Coal mine, cement plant, crushing, power plant, steel mill, metallurgy, quarrying, printing, recycling industry and other conveying equipment
Bearing Type:6203-6312
